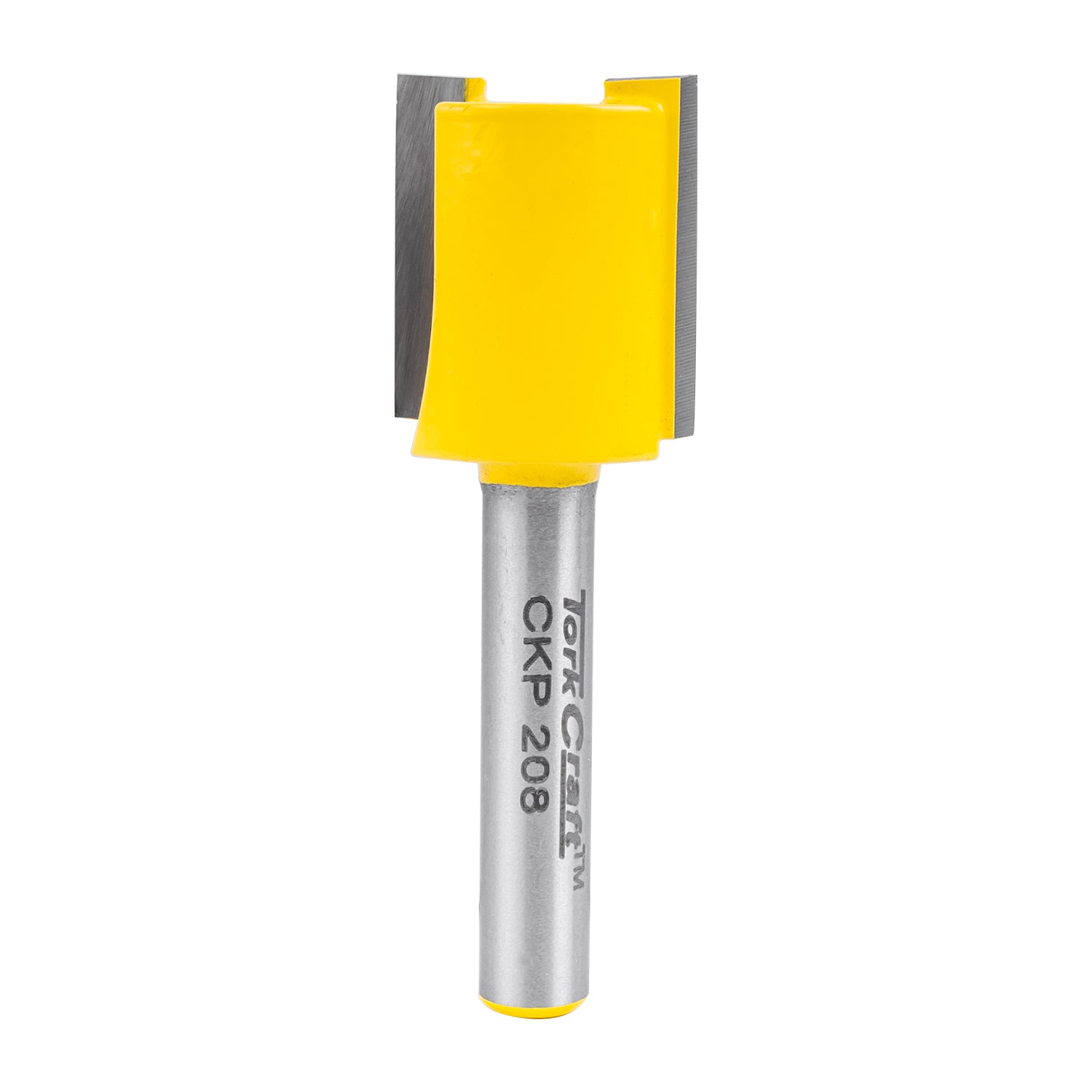

ROUTER BIT STRAIGHT 3/4' (19MM)
Features
- ¾″ (19 mm) cutting diameter — ideal for large grooves and joinery recesses.
- Straight cutting profile produces clean, square-walled channels.
- Precision-ground carbide tips for superior edge retention and smooth performance.
- Rigid body construction reduces vibration for a cleaner finish.
- Router-collet compatible — fits standard shank sizes securely.
Benefits
- Clean results: leaves flat bottoms and crisp shoulders on every pass.
- High stability: wide diameter maintains control during deep or long cuts.
- Versatile use: excellent for cabinet panels, dados, mortises and rebates.
Extra Information
- Use multiple shallow passes to prevent overload and ensure smooth cutting.
- Match router speed and feed rate to the density of the material.
- Ensure the bit is correctly seated and collet tightened before operation.
- Clean the bit regularly to prevent resin build-up and maintain performance.
Pro Tip
- For dados across veneered panels, first make a shallow scoring cut to protect the veneer edge, then complete the cut in stages.
- On long grooves, use a straightedge guide or router sled to keep the cut true and consistent.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 46(H)mm |
| Package Weight | 55.32g |
| Tool Dimensions | 52.60(L) x Ø19mm |
| Tool Weight | 34.35g |
| Cutting Diameter | 3/4" |
| Cutting Depth | 3/4" |
| Shank Diameter | 1/4" |
| Shank Length | 32mm |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Straight Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 175(W) x 57(H)mm |
| Weight (box/pack) | 674g |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 370(W) x 310(H)mm |
| Weight (box/pack) | 7.39kg |
| Qty (box/pack) | 100 |
Safety
- Always wear eye, hearing and dust protection when routing.
- Feed against bit rotation to maintain control and avoid kickback.
- Allow the router to reach full speed before contacting material, and stop fully before lifting out.
- Inspect bit and collet regularly; replace any damaged or dull components.
