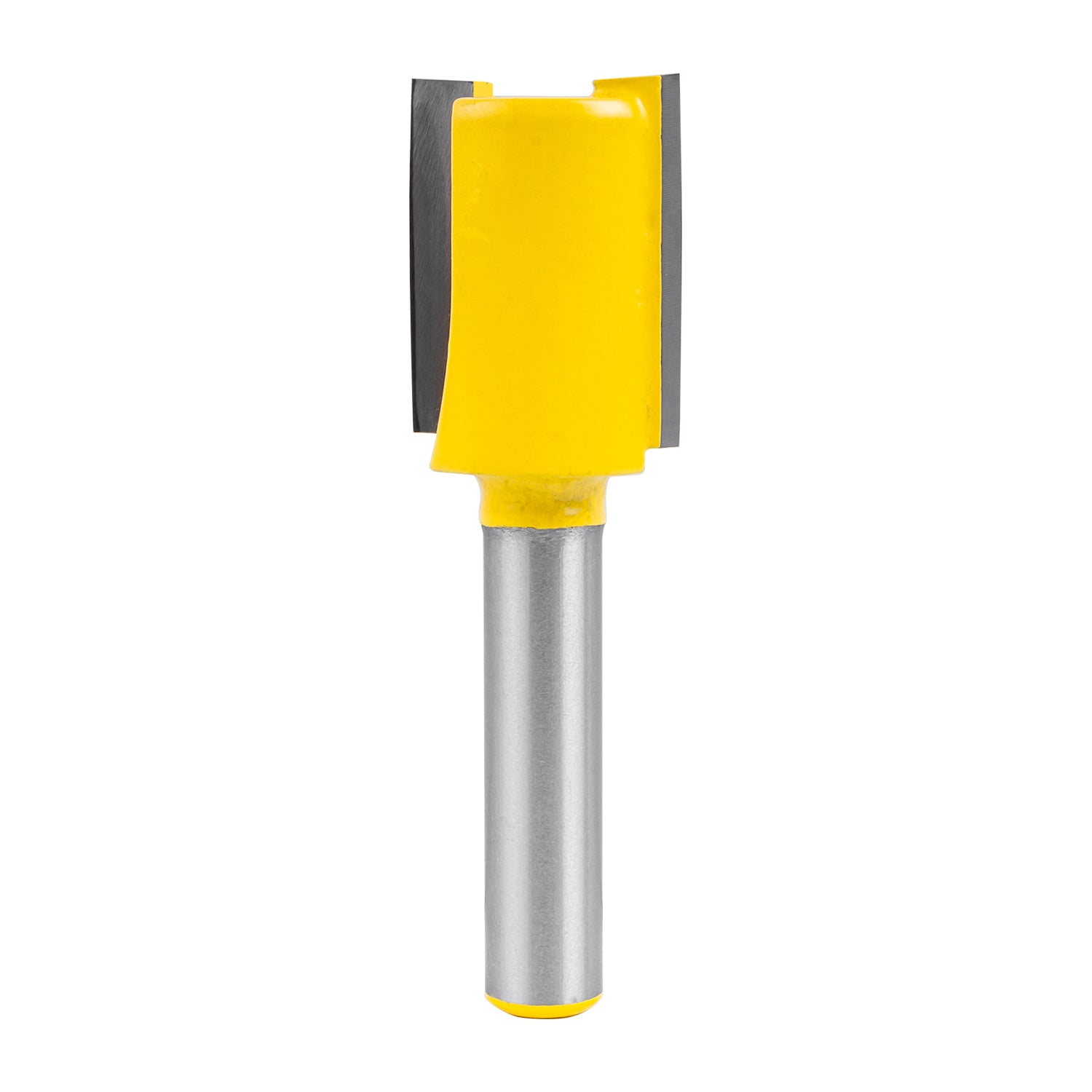

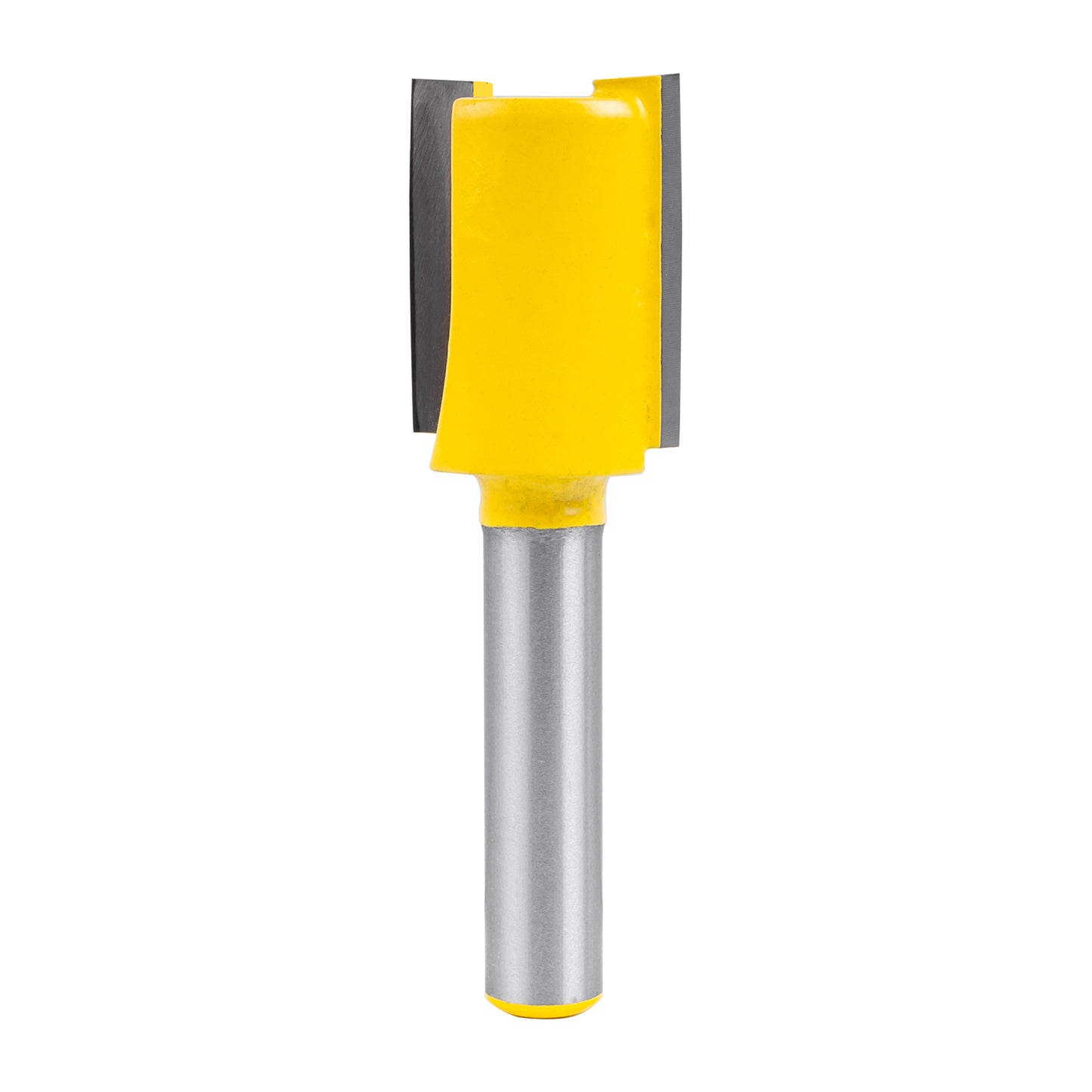

ROUTER BIT STRAIGHT 5/8' (15.88MM)
Features
- ⅝″ (15.88 mm) cutting diameter — ideal for wide grooves and joint work.
- Straight cutting profile — delivers square-walled, accurate cuts.
- Precision-ground carbide tips for long-lasting sharpness.
- Heavy-duty body minimizes vibration for cleaner results.
- Compatible with standard router collets for a secure, accurate fit.
Benefits
- Efficient cutting: wide bit clears material quickly while maintaining surface quality.
- Clean finish: flat-bottom grooves with minimal sanding needed.
- Versatile application: perfect for cabinetry, furniture making, and structural joinery.
Extra Information
- Use multiple shallow passes for deep grooves to prevent overload and tear-out.
- Adjust router RPM and feed rate to match the wood density.
- Always check bit seating and collet tightness before use.
- Use fences, guides, or templates for accurate control on long cuts.
Pro Tip
- When cutting dados for shelving, finish with a shallow cleanup pass at full width to ensure both edges are perfectly parallel.
- In dense hardwoods, apply a light climb-cut along the grain edge to minimize chipping before the final pass.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 46(H)mm |
| Package Weight | 46.95g |
| Tool Dimensions | 49.64(L) x Ø15.88mm |
| Tool Weight | 27.41g |
| Cutting Diameter | 5/8" |
| Cutting Depth | 3/4" |
| Shank Diameter | 1/4" |
| Shank Length | 32mm |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Straight Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 175(W) x 57(H)mm |
| Weight (box/pack) | 596g |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 370(W) x 310(H)mm |
| Weight (box/pack) | 6.76kg |
| Qty (box/pack) | 100 |
Safety
- Always wear eye, hearing, and dust protection when routing.
- Secure your workpiece; feed against the bit’s rotation to prevent kickback.
- Let the router reach full speed before starting the cut, and stop fully before lifting out.
- Inspect the bit and collet before each use; replace any damaged components.
