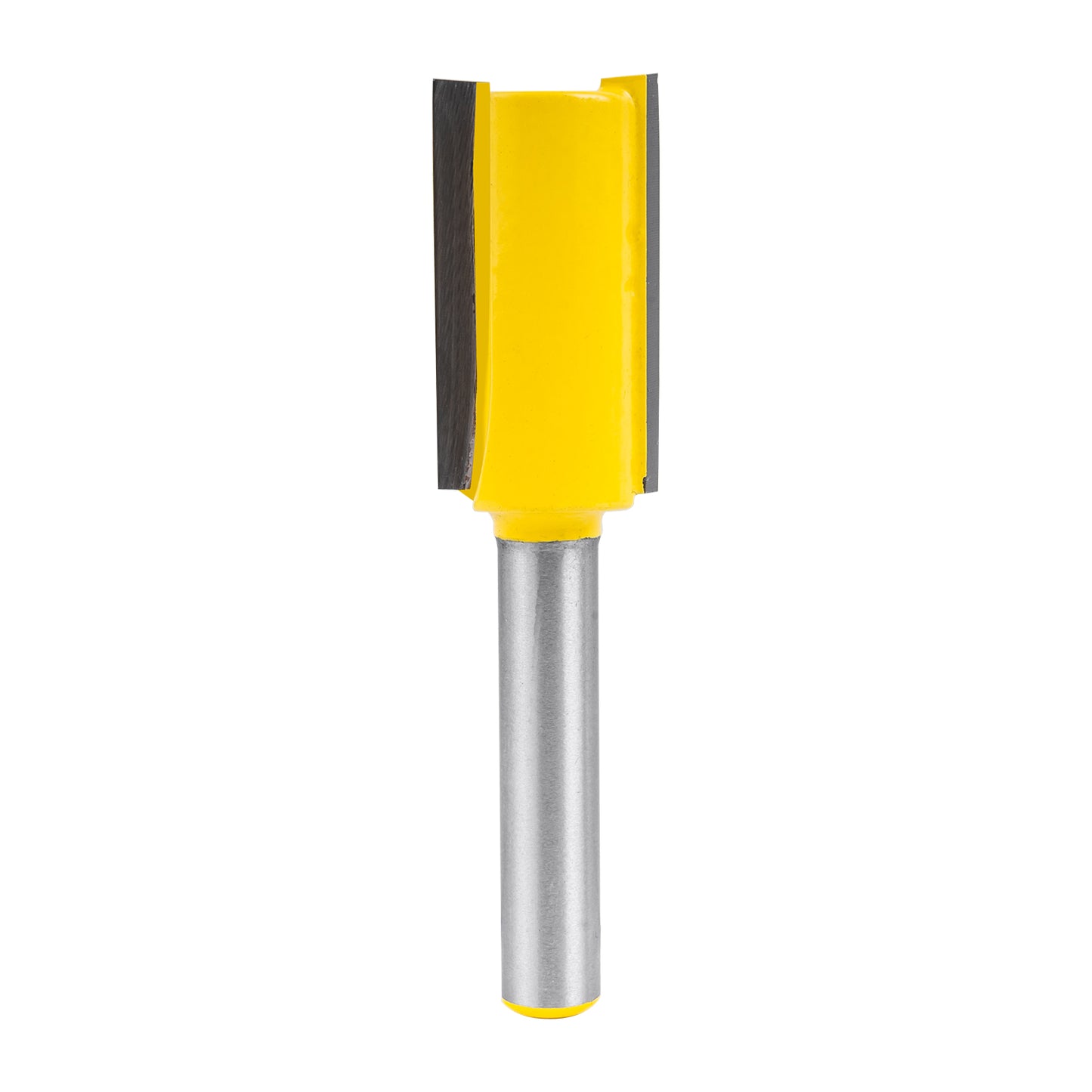

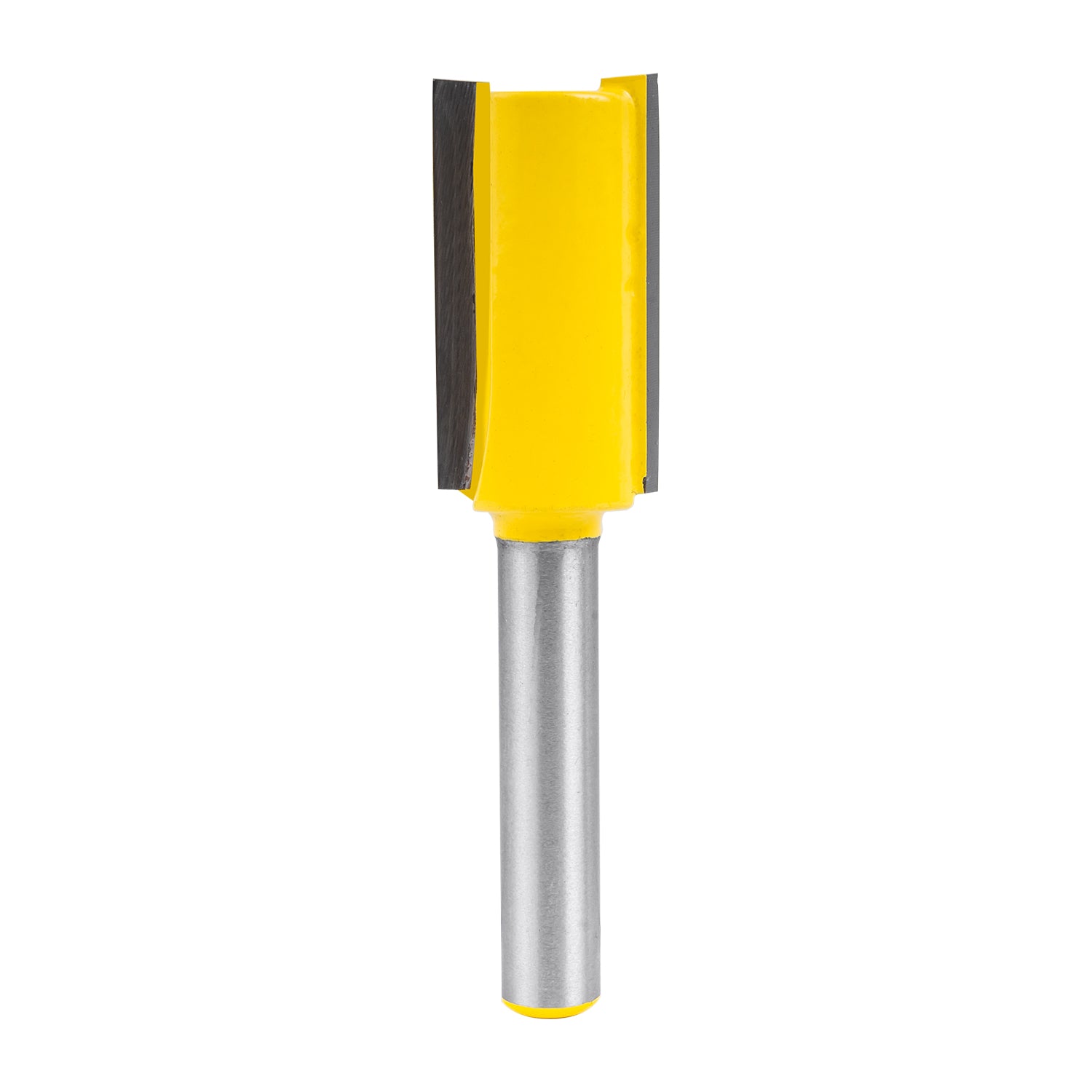

ROUTER BIT STRAIGHT 9/16' (14.29MM)
Features
- Straight cutting profile for true, square-walled grooves and recesses.
- 9⁄16″ (14.29 mm) diameter — a versatile mid-size for general routing work.
- Precision-ground carbide edges deliver a smooth, consistent finish.
- Durable, rigid body reduces vibration and ensures long-term accuracy.
- Compatible with standard router collets of matching shank size.
Benefits
- Accurate performance: produces clean, precise cuts with minimal sanding.
- Reduced tear-out: honed edges cut smoothly across grain.
- Versatile use: ideal for cabinetry, joinery and trim-work applications.
Extra Information
- For deep grooves, make multiple shallow passes rather than a single heavy cut.
- Match the router’s speed and feed rate to the material density.
- Ensure the bit is securely seated in the collet before powering on.
- Use dust extraction to improve visibility and maintain a clean surface finish.
Pro Tip
- When routing veneer or laminated stock, make a shallow scoring pass first to prevent chipping on the edges.
- Use guide fences or straightedges for long grooves to maintain alignment and avoid drift.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 46(H)mm |
| Package Weight | 48.87g |
| Tool Dimensions | 58.47(L) x Ø14.29mm |
| Tool Weight | 27.41g |
| Cutting Diameter | 9/16" |
| Cutting Depth | 1" |
| Shank Diameter | 1/4" |
| Shank Length | 32mm |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Straight Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 175(W) x 57(H)mm |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 370(W) x 310(H)mm |
| Qty (box/pack) | 100 |
Safety
- Wear eye, hearing and dust protection at all times.
- Secure the workpiece firmly before routing; feed against bit rotation.
- Allow the router to reach full speed before engaging, and stop completely before lifting out.
- Inspect and replace dull or chipped bits to maintain safety and cut quality.
