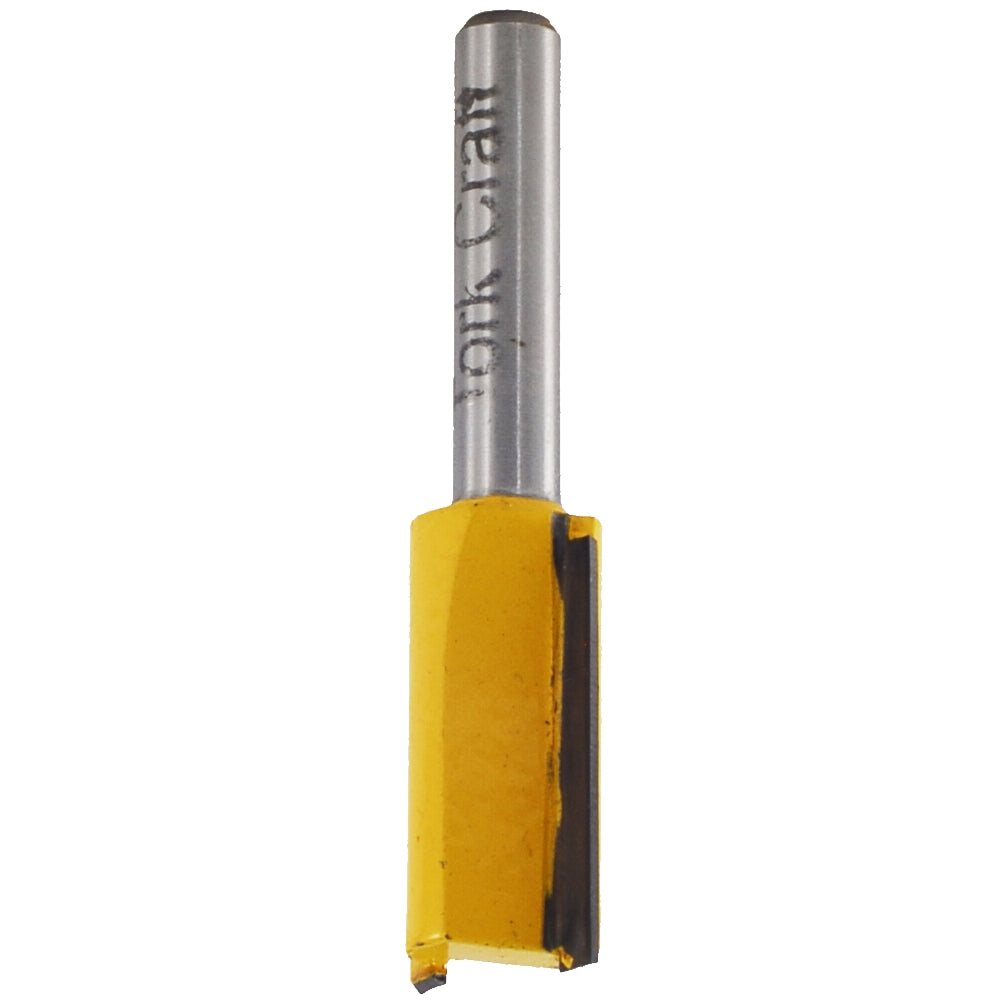

ROUTER BIT STRAIGHT 1/2' (12.7MM)
Features
- Straight profile: delivers true, square-walled cuts with flat bottoms.
- 12.7 mm (½″) cutting diameter — ideal for standard dado and groove sizing.
- Precision-ground carbide edges provide a cleaner cut and longer service life.
- Heavy-duty body construction for stability and reduced vibration.
- Router-collet compatible — secure fit for reliable, accurate operation.
Benefits
- Smooth finish: clean, burn-free grooves and dados.
- Strong performance: large diameter reduces flex in deep cuts.
- Multi-purpose: suitable for joinery, cabinet slots, template work, and trimming.
Extra Information
- Make several progressive passes to achieve full depth cleanly.
- Adjust feed rate and RPM to suit material and depth of cut.
- Ensure the router bit is properly seated and tightened in the collet.
- Use fences, guides or templates for straight, controlled results.
Pro Tip
- When cutting deep grooves, use an upcut spiral pass for chip clearance, then follow with this straight bit for a smooth finish.
- For dados in veneered plywood, make a shallow scoring pass first to avoid splintering at the surface.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 46(H)mm |
| Package Weight | 43.18 |
| Tool Dimensions | 58.49(L) x Ø12.7mm |
| Tool Weight | 22.90g |
| Cutting Diameter | 1/2" |
| Cutting Depth | 1" |
| Shank Diameter | 1/4" |
| Shank Length | 32mm |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Straight Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 175(W) x 57(H)mm |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 370(W) x 310(H)mm |
| Qty (box/pack) | 100 |
Safety
- Wear eye, hearing and dust protection when routing.
- Secure the workpiece; feed against the bit’s rotation to prevent kickback.
- Let the router reach full speed before engaging and stop fully before removing.
- Inspect the bit and collet regularly and replace if worn or damaged.
