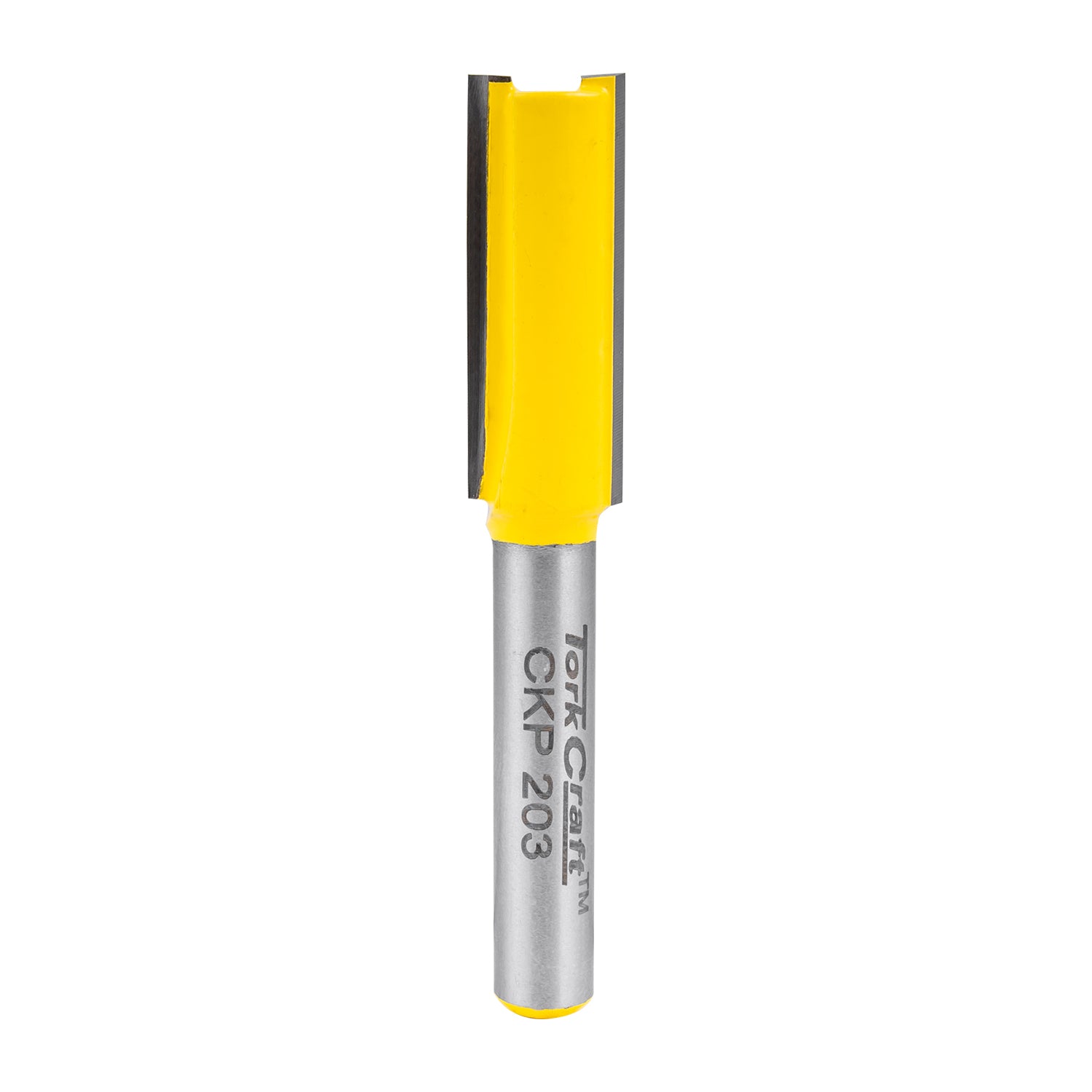

ROUTER BIT STRAIGHT 3/8' (9.53MM)
Features
- Straight profile: creates square-walled, flat-bottom cuts.
- 9.53 mm (3⁄8″) diameter for accurate groove and dado routing.
- Precision-ground carbide edges for extended sharpness and smooth results.
- Sturdy body design to reduce vibration and chatter.
- Compatible with standard router collets — secure fit for clean operation.
Benefits
- Clean finish: minimal tear-out and smooth bottoms.
- Accurate tracking: ideal for template or jig routing.
- Versatile: use for joinery, trimming, mortising, and decorative inlays.
Extra Information
- Perform multiple shallow passes rather than deep single cuts.
- Match feed rate and RPM to material to prevent burning.
- Ensure bit is correctly seated in collet and tightened securely before use.
- Use dust extraction where possible for better visibility and finish quality.
Pro Tip
- For clean dados, first score the cut line with a marking knife to avoid splintering along the grain.
- When routing end grain, take a light climb-cut pass to reduce breakout, then finish with a standard feed direction cut.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 46(H)mm |
| Package Weight | 36.90g |
| Tool Dimensions | 58.27(L) x Ø9.53mm |
| Tool Weight | 17.09g |
| Cutting Diameter | 3/8" |
| Cutting Depth | 5/8" |
| Shank Diameter | 1/4" |
| Shank Length | 32mm |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Straight Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 175(W) x 57(H)mm |
| Weight (box/pack) | 510g |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 370(W) x 310(H)mm |
| Weight (box/pack) | 5.81kg |
| Qty (box/pack) | 100 |
Safety
- Wear eye, hearing, and dust protection while routing.
- Secure the workpiece and use fences or templates to control movement.
- Feed against the bit’s rotation to prevent kickback.
- Let the router reach full speed before contacting material; stop fully before lifting out.
- Inspect bit for wear or damage before each use.
