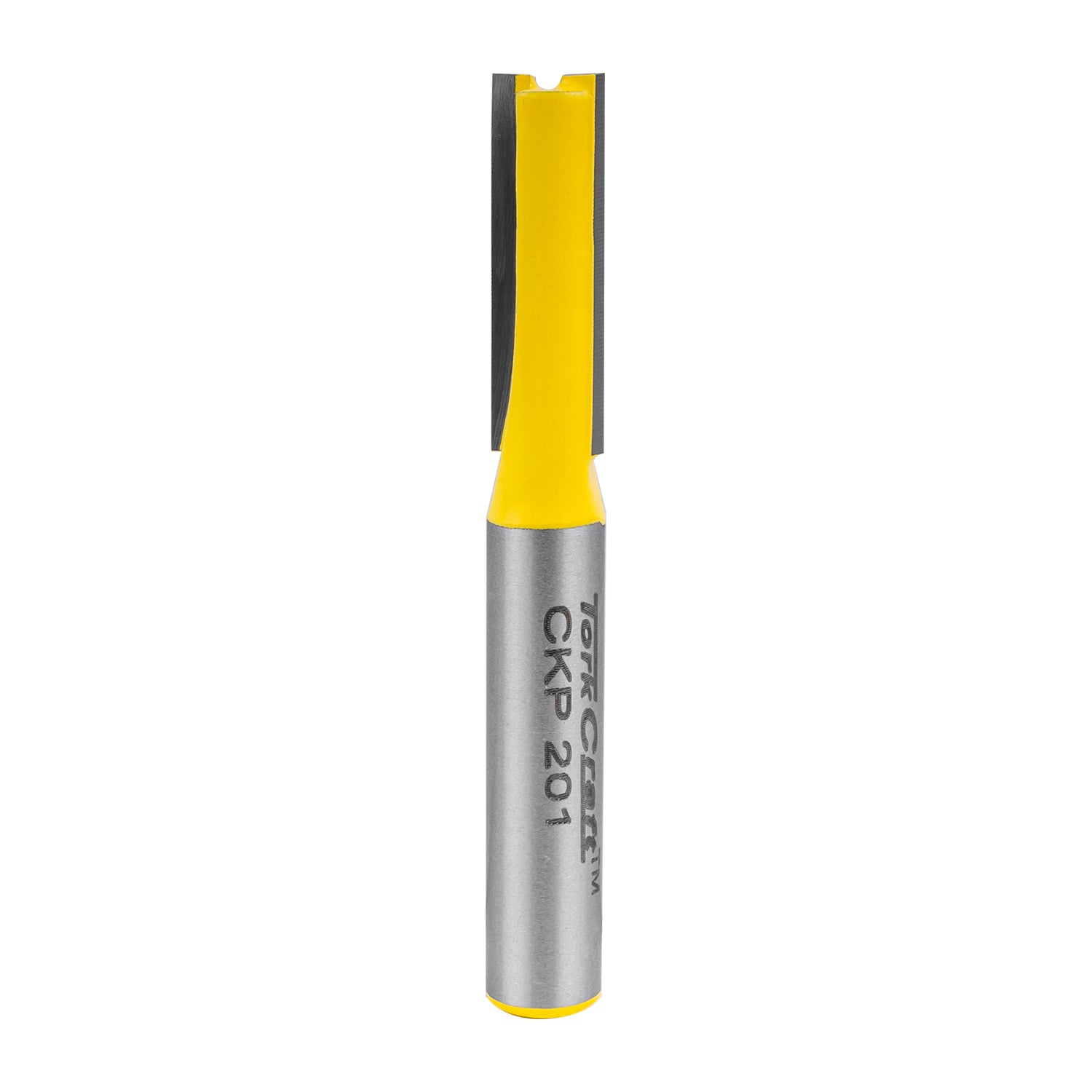

ROUTER BIT STRAIGHT 1/4' (6.35MM)
Features
- Straight edge bit — ideal for trimming, grooves and cleaning slots.
- 6.35 mm (¼″) cutting diameter.
- Precision-ground cutting edges for smooth, clean cuts.
- Rigid construction to reduce vibration and chatter.
- Compatible with standard router collets of corresponding shank size.
Benefits
- Crisp finish: produces clean grooves with minimal sanding.
- Accurate tracking: usable in jigs, fences, and straight guides.
- Versatile: works for joinery, hardware clearance, template routing, etc.
Extra Information
- Make multiple, shallow passes rather than removing too much in one go.
- Maintain a steady feed speed and rpm to avoid burning or chatter.
- Ensure the bit is securely clamped in the collet before use.
- Clear chips regularly, especially in deeper cuts.
Pro Tip
- For hinge or hardware routing, score the boundary first with a knife, then remove waste in steps to preserve sharpness and prevent tear-out.
- When crossing end-grain, consider a light climb-cut for a clean finish, then complete the pass standard-cut.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 46(H)mm |
| Package Weight | 29.32g |
| Tool Dimensions | 50.16(L) x Ø6.35mm |
| Tool Weight | 10.56g |
| Cutting Diameter | 1/4" |
| Cutting Depth | 3/4" |
| Shank Diameter | 1/4" |
| Shank Length | 27mm |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Straight Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 175(W) x 57(H)mm |
| Weight (box/pack) | 425g |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 370(W) x 310(H)mm |
| Weight (box/pack) | 4.96kg |
| Qty (box/pack) | 100 |
Safety
- Always wear eye and hearing protection when routing.
- Secure your workpiece and guide/template firmly.
- Feed direction should be against the rotation of the bit to avoid grabbing.
- Allow the router to reach full speed before entering the cut; stop fully before removing the bit.
- Inspect the bit before each use and replace it when dull or damaged.
