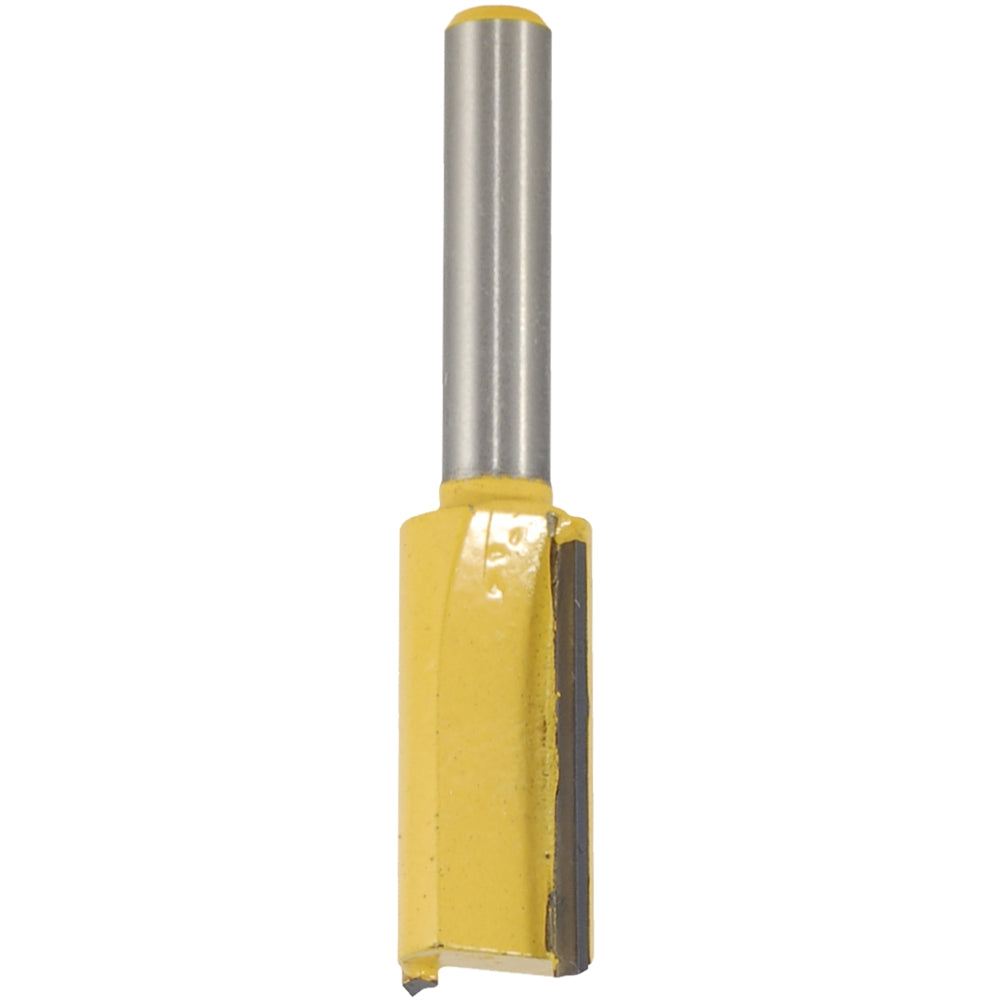

ROUTER BIT STRAIGHT 12MM
Features
- Straight profile for clean, square-walled cuts.
- 12 mm cutting diameter — versatile width for dados and recesses.
- Precision-ground edges for smooth finish and reduced tear-out.
- Rigid body helps minimise chatter in deeper passes.
- Router-collet compatible (use the correctly sized shank/collet).
Benefits
- Clean finish: flat-bottom grooves with minimal sanding.
- Accurate tracking: performs well with fences, jigs and templates.
- All-rounder: suitable for joinery and general shop routing tasks.
Extra Information
- Make multiple shallow passes for deep cuts; clear chips between passes.
- Match RPM & feed rate to the material to avoid burning.
- Ensure the bit is fully seated and the collet is tight before use.
- Use dust extraction where possible for better visibility and surface quality.
Pro Tip
- For hinge or hardware pockets, score the outline with a knife, then remove waste with a series of shallow plunges to keep edges crisp.
- On end-grain cuts, take a light climb-cut pass to reduce breakout, then complete the cut feeding against rotation.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 46(H)mm |
| Cutting Diameter | 12mm |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Straight Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 175(W) x 57(H)mm |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 370(W) x 310(H)mm |
| Qty (box/pack) | 100 |
Safety
- Wear eye & hearing protection; use a dust mask or extraction.
- Secure the workpiece; feed against bit rotation to prevent kickback.
- Let the router reach full speed before engaging; stop fully before lifting out.
- Inspect bit and collet regularly; replace if worn or damaged.
