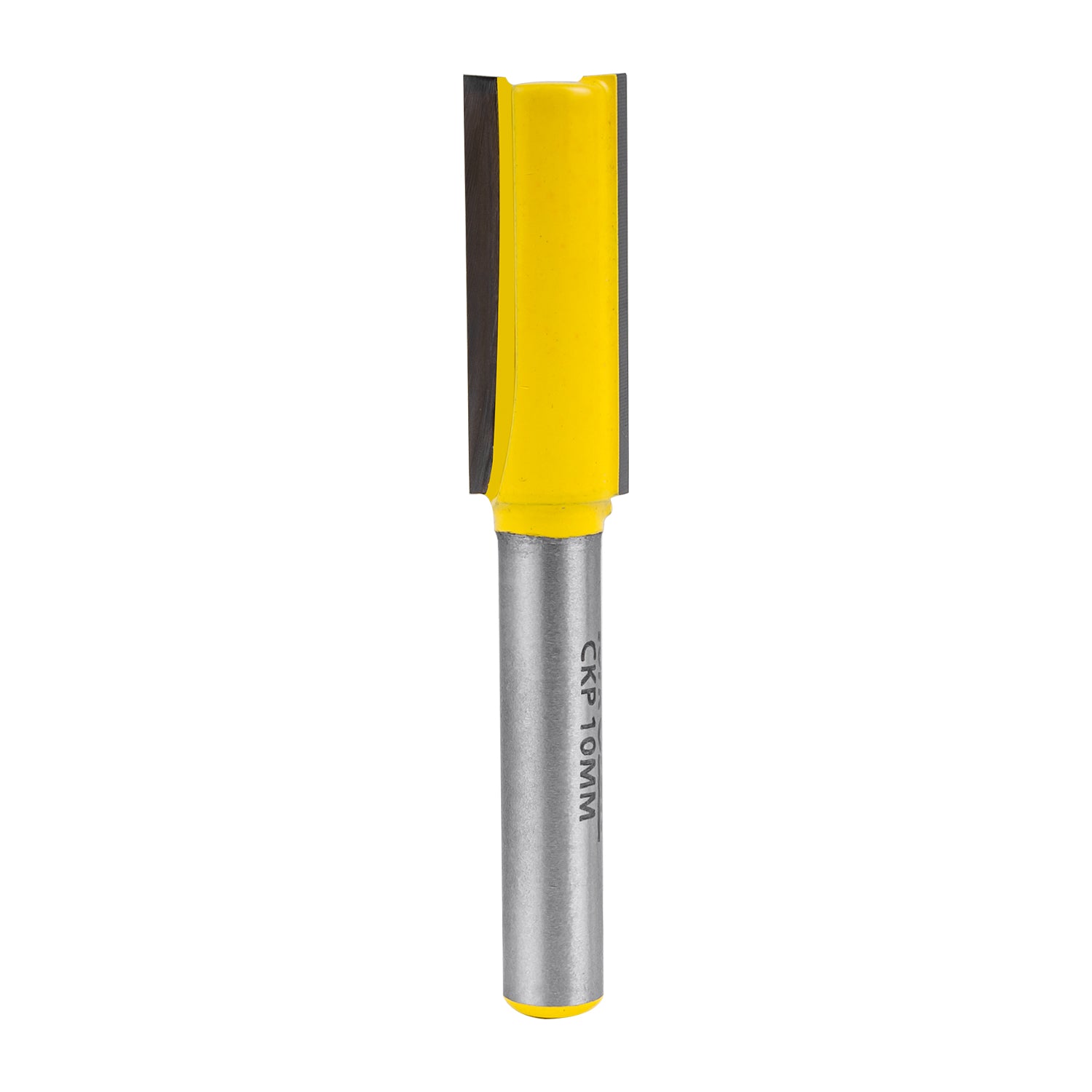

ROUTER BIT STRAIGHT 10MM
Features
- Straight profile for flat-bottom, square-walled cuts.
- 10 mm diameter — versatile for dados, slots and clean recesses.
- Precision-ground cutting edges for smooth finish and reduced tear-out.
- Robust body for stable tracking with less chatter.
- Router collet compatible (use a correctly sized collet for the shank).
Benefits
- Clean finish: sharp, square grooves with minimal sanding.
- Reliable accuracy: holds line well in jigs and templates.
- Versatile use: handles joinery and general routing tasks.
Extra Information
- Make multiple shallow passes for deep cuts; clear chips between passes.
- Match RPM and feed rate to material to avoid burning.
- Ensure the bit is seated correctly and the collet is tight before use.
- Use fences, guides or templates for straight, repeatable results.
Pro Tip
- When routing across end grain, score the shoulder with a knife or make a light climb-cut pass to reduce breakout, then finish with a standard pass.
- For mortises, plunge in stair-steps and side-clear to full width — this keeps the bit cooler and the floor flatter.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 46(H)mm |
| Package Weight | 38.25g |
| Tool Dimensions | 57.55(L) x Ø10mm |
| Tool Weight | 16.86g |
| Cutting Diameter | 10mm |
| Cutting Depth | 25mm |
| Shank Diameter | 1/4" |
| Shank Length | 30mm |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Straight Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 175(W) x 57(H)mm |
| Weight (box/pack) | 497g |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 370(W) x 310(H)mm |
| Weight (box/pack) | 5.68kg |
| Qty (box/pack) | 100 |
Safety
- Wear eye and hearing protection; use dust extraction where possible.
- Secure the workpiece; feed against bit rotation to prevent kickback.
- Let the router reach full speed before engaging; stop fully before removing from the cut.
- Inspect bit and collet regularly; replace worn or damaged components.
