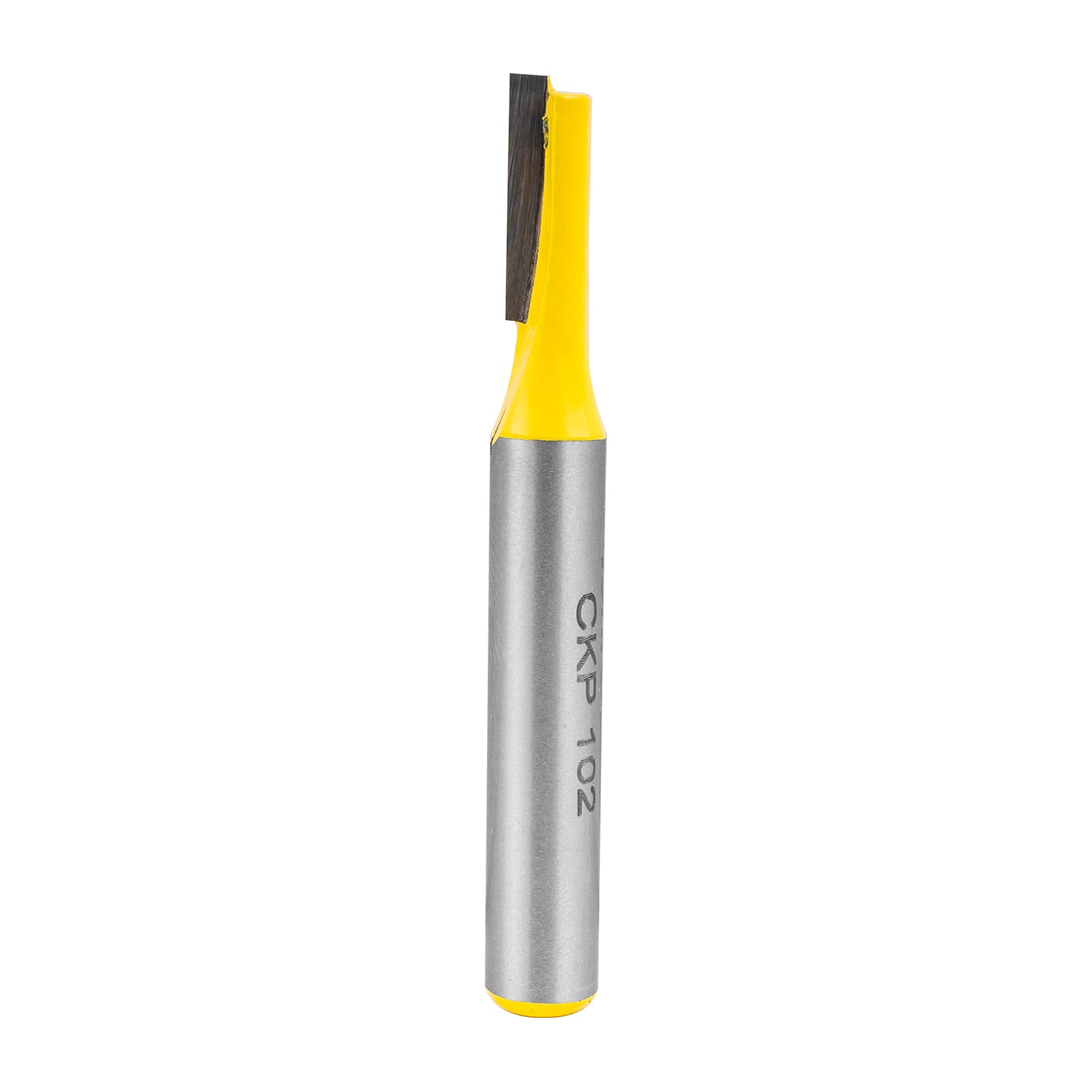

ROUTER BIT STRAIGHT 3/16' (4.762MM)
Features
- Straight profile: produces square-walled grooves or dadoes.
- Diameter: 3⁄16″ (4.762 mm).
- Shank: standard size (use suitable router collet).
- High-quality cutting edges: sharpened for clean, chip-free cuts.
- Construction: durable material suitable for wood, MDF, plywood and similar materials.
Benefits
- Clean finish: delivers sharp grooves with minimal tear-out.
- Versatile: can be used in decorative, structural and fixture routing tasks.
- Precision control: narrow bit excellent for detail work and tight joinery.
Extra Information
- Use at correct RPM and feed rate to avoid burning or tear-out.
- Make multiple shallow passes rather than one deep cut.
- Ensure the bit is securely clamped in the collet and the router is stable before routing.
- On long slots, retract and clear chips often to maintain cut quality.
Pro Tip
- Start with a pilot groove or guide bearing to keep the bit tracking true in template work.
- When cutting deep slots, use a spiral bit or add a bottoming pass to clean the floor of the cut.
| Description | Specification |
| Packaging Type | Hanging card / Blister |
| Material | Cutting Edge: Tungsten Carbide Body & Shank: HSS (High Speed Steel) |
| Package Dimensions | 138(L) x 78(W) x 46(H)mm |
| Package Weight | 30.31g |
| Tool Dimensions | 51.10(L) x Ø4.76mm |
| Tool Weight | 9.77g |
| Cutting Diameter | 3/16" |
| Cutting Depth | 1/2" |
| Shank Diameter | 1/4" |
| Shank Length | 32mm |
| Country of Origin | Republic of China (PRC) |
| Warranty | 6 Months |
| Content | 1x Straight Router Bit |
Bulk
| Inner Box | |
| Dimensions (box/pack) | 385(L) x 175(W) x 57(H)mm |
| Weight (box/pack) | 429g |
| Qty (box/pack) | 10 |
| Outer Box | |
| Dimensions (box/pack) | 405(L) x 370(W) x 310(H)mm |
| Weight (box/pack) | 5.04kg |
| Qty (box/pack) | 100 |
