AirCraft Air Die Grinder Service Kit Valve Components for AT0017 6mm Mini (AT0017-SK03)
At a Glance: Valve component service kit for the AirCraft AT0017 6mm Mini Air Die Grinder—replaces key valve parts to restore consistent control and dependable shut-off.
The AirCraft AT0017-SK03 Service Kit is made to refresh the valve assembly inside your AT0017 6mm Mini Air Die Grinder—the part of the tool that controls airflow, response, and shut-off behaviour. When valve parts wear or contamination builds up, you’ll often see classic symptoms: sticky throttle action, inconsistent speed, air leaks, poor response, or a grinder that doesn’t shut off as crisply as it should. This kit combines the essential valve components (including the valve stem and spring elements, plus the related plug/retainer as shown) so you can rebuild the valve section properly. It’s the right fix for bringing back smooth control, reliable operation, and that satisfying “on/off” confidence in your hand.
In a pneumatic tool, the valve assembly is the gatekeeper. Refreshing worn valve components helps reduce leaks, improves response, and ensures the tool stops when you release the trigger—simple, safe, and effective.
Features
- Valve component service kit for AT0017 Designed specifically for the AirCraft AT0017 6mm Mini Air Die Grinder.
- Matched valve parts Includes the main components needed to service the valve assembly (items 10–12 and 14).
- Ideal for performance issues Perfect when the tool leaks, sticks, runs inconsistently, or shuts off poorly.
- Service-friendly kit format Convenient way to replace multiple valve parts together for a proper repair.
Benefits
- Restores smooth response: Helps bring back consistent throttle control and predictable speed changes.
- Improves shut-off reliability: Supports a cleaner valve action to reduce run-on and sticking.
- Helps reduce air leaks: Refreshing valve components can improve sealing and reduce wasted air.
Extra Information
- Compatible with the AirCraft AT0017 6mm Mini Air Die Grinder.

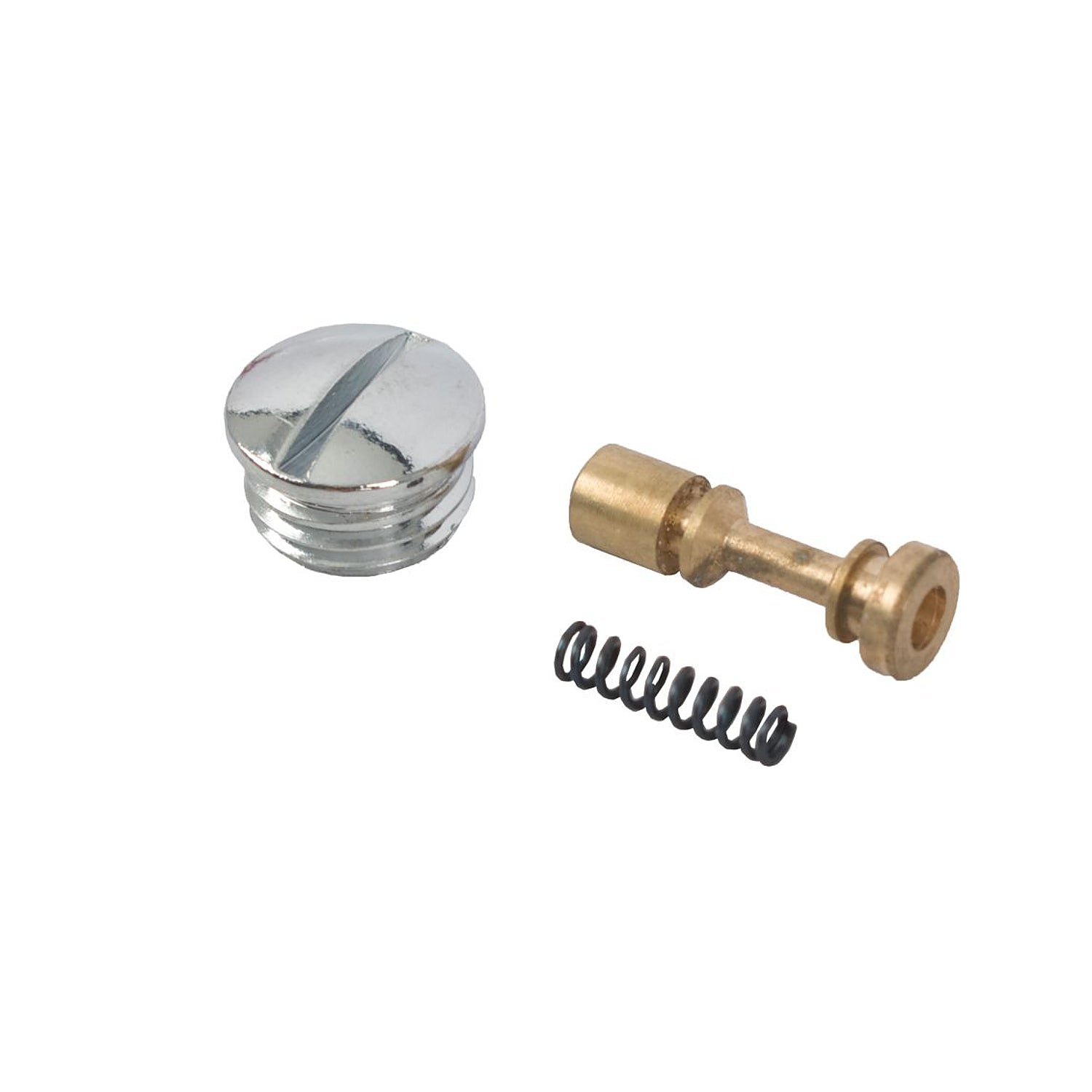

- Kit contents: Valve components (typically includes items 10–12 and 14 from the AT0017 parts diagram, including valve stem, spring, and the related plug/retainer as shown).
- For best results, inspect and replace worn O-rings/seals in the valve area if applicable—seals and valve parts work together.
- Use clean, dry compressed air and add air tool oil regularly to reduce valve wear and sticking.
Pro Tip
- After rebuilding the valve, run the tool briefly at low pressure and listen for leaks. A quick soapy-water check around the valve plug area can reveal sealing issues immediately.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | AT0017-SK03 |
| Product Type | Service Kit (Valve Components) |
| Compatible Tool | AirCraft AT0017 Air Die Grinder 6mm Mini |
| Kit Purpose | Replaces valve assembly components (items 10–12 and 14) |
| Material | Mixed metal components (as supplied) |
Safety
- Disconnect the air supply and release line pressure before servicing the valve assembly.
- Wear eye protection—springs and small parts can move unexpectedly during disassembly.
- After reassembly, test at low pressure first to confirm smooth valve action, reliable shut-off, and no air leaks.
- Never operate the tool if it sticks, leaks excessively, or fails to shut off cleanly.
