GUIDING SLEEVE FOR AIR RATCHET WRENCH
GUIDING SLEEVE FOR AIR RATCHET WRENCH
Couldn't load pickup availability
Share

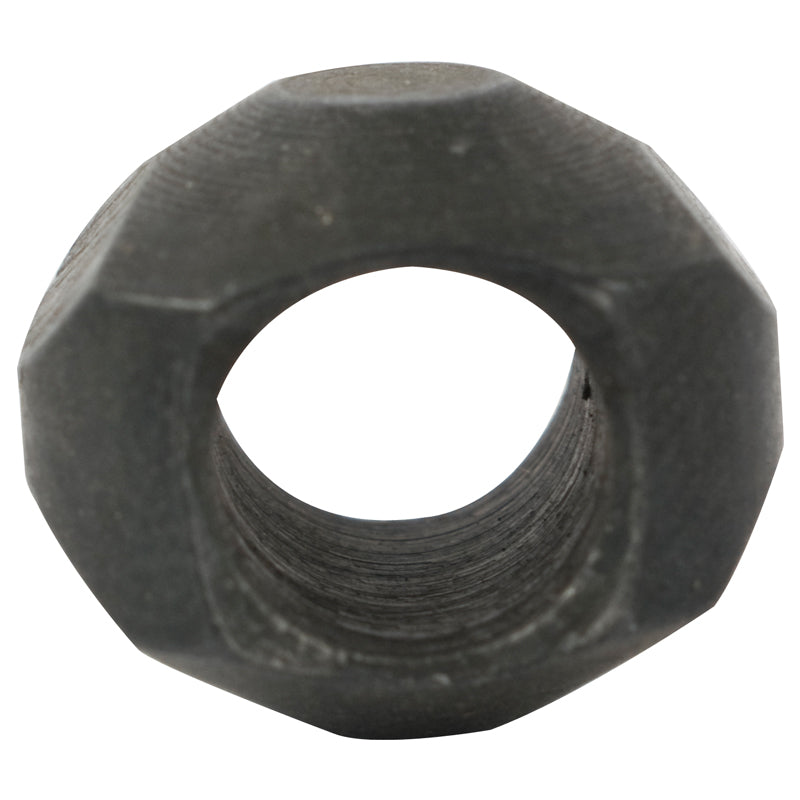

AirCraft AT0016-27 Guiding Sleeve For Air Ratchet Wrench
At a Glance: Replacement guiding sleeve/guide bushing for the AirCraft AT0016 air ratchet—keeps moving parts running straight for smoother, more reliable performance.
When a mechanism needs to move smoothly, it needs guidance—literally. The AirCraft AT0016-27 Guiding Sleeve is a replacement guide bushing used in the AirCraft Air Ratchet Wrench (AT0016 series) to keep a moving or rotating component aligned in its bore. By controlling clearance and preventing sideways movement, the guiding sleeve helps reduce vibration, uneven wear and “sloppy” feel in the drive system. If the original sleeve is worn, oval, cracked, or loose in its seat, the tool can develop play, noise and rough operation. Replacing it restores tighter alignment and helps the ratchet run cleaner and more consistently.
Guide sleeves are all about control—keeping components centred so forces stay where they should. That means less friction, better engagement, and longer life for shafts, gears and housings.
Features
- AT0016-series compatibility Designed as a replacement guiding sleeve for the AirCraft Air Ratchet Wrench range.
- Guide bushing design Supports accurate alignment of internal moving parts.
- Precision bore support Helps control clearance and reduce unwanted movement.
- Durable metal construction Built to withstand vibration, load and repeated cycling.
Benefits
- Reduces play and vibration: Keeps components centred for smoother engagement and operation.
- Protects key components: Prevents uneven loading that can wear shafts, gears and housings.
- Improves reliability: Restores a tighter, more consistent feel during use.
Extra Information
- Intended as a spare part for AirCraft Air Ratchet Wrench assemblies (AT0016 series).
- Replace if the sleeve is scored, oval, cracked, or loose, or if the mechanism has excessive play.
- Inspect the mating shaft and adjacent bearings/sleeves—worn mating parts can shorten the life of a new guide sleeve.
- If a parts diagram is available under the Documents tab, use it to confirm placement and assembly order.
Pro Tip
- Lightly oil the guiding sleeve during assembly and keep the bore spotless. Clean lubrication prevents dry friction and helps the tool feel smooth from the first trigger pull.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | AT0016-27 |
| Product Type | Spare Part – Guiding Sleeve / Guide Bushing |
| Compatible Tool | AirCraft Air Ratchet Wrench (AT0016 series) |
| Material | Metal |
| Function | Guidance / Alignment / Clearance Control |
Safety
- Disconnect the air supply and bleed remaining pressure before servicing the tool.
- Wear eye protection when removing/pressing sleeves—parts can slip unexpectedly.
- Use correct tools to press the sleeve in square; avoid force that can distort the housing bore.
- Keep all components clean—grit can score the sleeve and cause rapid wear.
- After reassembly, test at low pressure first to confirm smooth, safe operation before full use.
