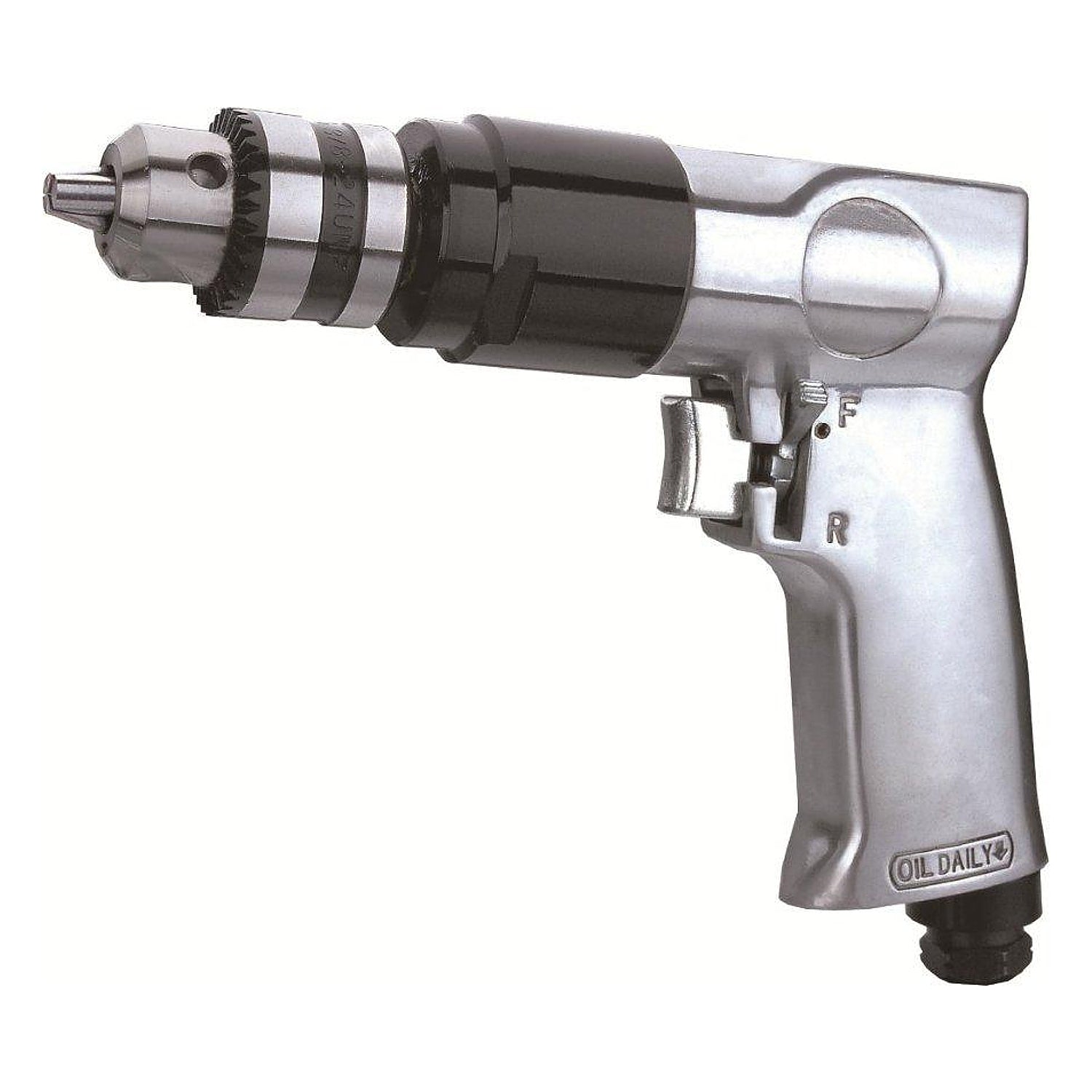

Reversible pneumatic drill
The pneumatic drill is ideal for pilot hole drilling in a production line.
The drill has non-variable speed set to 1800 rpm.
A compressor is required with an air flow delivery of at least 106 l/min at 6.3 Bar to make use of the drill.
Make sure that an in-line lubricator is fitted with pneumatic oil (AT OIL).
| Description | Specification |
| Working pressure | 6.3 Bar |
| Free speed | 1800 rpm |
| Average air consumption | 106 l/min |
| Suggested minimum compressor HP | 2 HP |
| Chuck size | 10mm |
| consider safety for your health and the people around you | |||
General safety suggestions:It is advisable to always have the following items nearby and in a good condition
|
|||
 |
 |
 |
 |
|
Wear Gloves
|
Eye Protection
|
Hearing Protection
|
Dust Mask
|
Download the Exploded view:
View the Exploded view:
