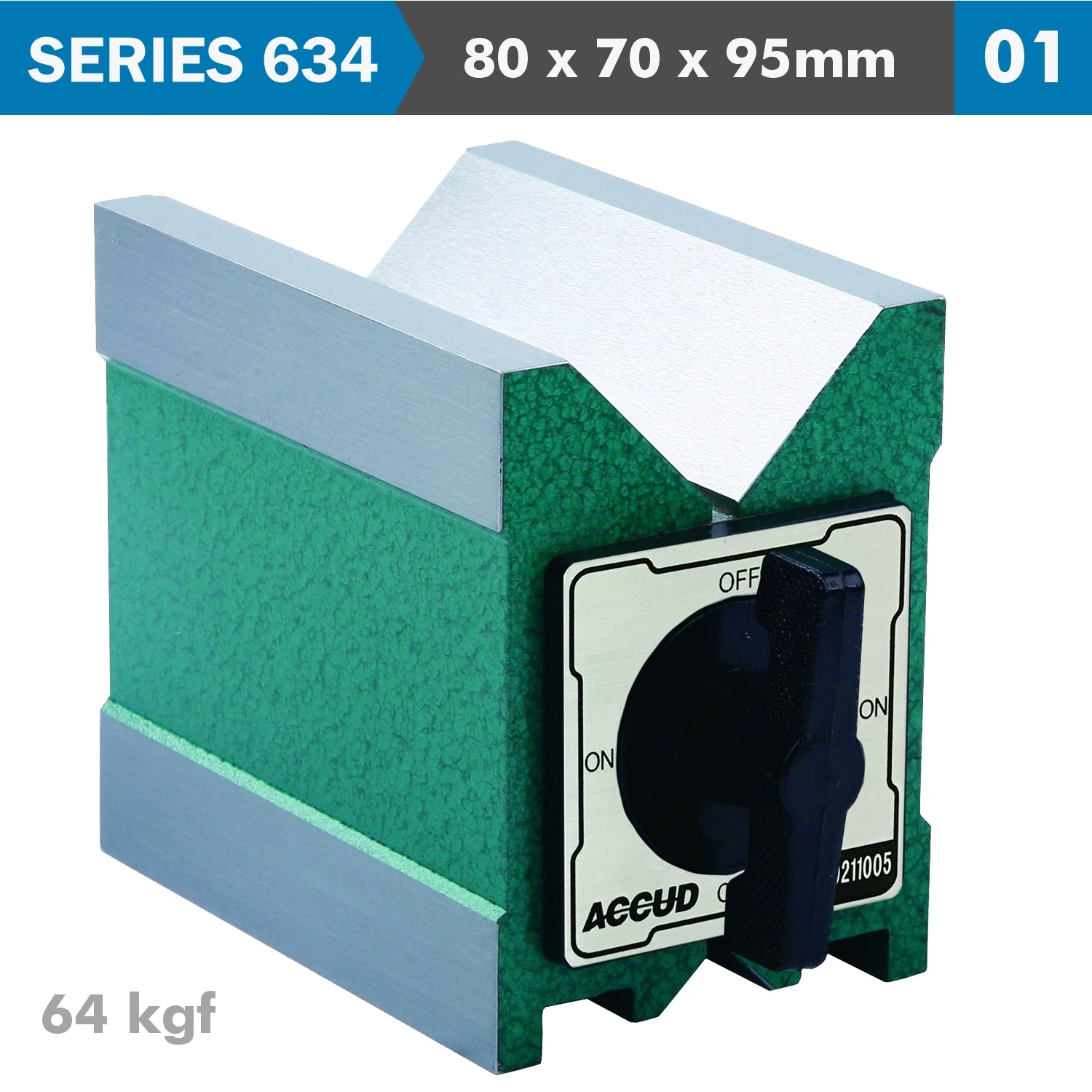

SERIES 634 -[01]-
A magnetic V-block is a versatile tool commonly used in machining, inspection, and precision engineering tasks. It is designed to hold cylindrical or irregularly shaped workpieces securely in place during operations such as grinding, milling, drilling, or inspection. The 'V' shape of the block allows it to cradle round or cylindrical objects, while the integrated magnetic base provides a strong, stable grip on ferrous materials, ensuring the workpiece remains steady during use.
- Hold cylindrical workpiece for inspection and machining
- Top groove for large shafts
- Bottom grooves for small shafts
Applications of a Magnetic V-Block
- Workpiece Holding: Commonly used to hold cylindrical or irregularly shaped workpieces securely in place during machining operations such as grinding, milling, or drilling.
- Inspection and Measurement: Used in inspection processes to hold parts securely during precision measurement, ensuring accurate readings.
- Surface Grinding: Ideal for holding workpieces during surface grinding operations, providing a stable and accurate setup.
- Marking and Layout: Useful for marking and layout operations where the workpiece needs to be held steady for accurate scribing or punching.
Advantages of a Magnetic V-Block
- Versatile Holding: Capable of holding a wide range of workpieces, including cylindrical, square, or irregular shapes, making it a versatile tool in any workshop.
- Strong Magnetic Grip: The magnetic base provides a powerful grip on ferrous surfaces, ensuring that the workpiece stays in place even during heavy machining operations.
- Precision and Stability: The precision-ground surfaces and V-grooves offer stable and accurate positioning, essential for high-precision tasks.
- Ease of Use: The on/off switch for the magnetic base allows for easy positioning and removal of the V-block, enhancing workflow efficiency.
Usage Procedure
- Select the Appropriate V-Block: Choose a magnetic V-block that matches the size and shape of your workpiece.
- Activate the Magnetic Base: Place the V-block on a ferrous surface and activate the magnet using the on/off switch to secure it in place.
- Position the Workpiece: Place the workpiece in the V-groove, ensuring it is cradled securely by the V-block.
- Lock the Workpiece: If needed, use additional clamps or fixtures to hold the workpiece in place within the V-groove.
- Perform the Operation: Carry out the machining, grinding, or inspection operation while the workpiece is securely held by the magnetic V-block.
- Deactivate the Magnet: Once the operation is complete, deactivate the magnetic base using the switch to release the block and remove the workpiece.
A magnetic V-block is an essential tool for machinists, inspectors, and precision engineers, providing a reliable and versatile solution for holding cylindrical and irregularly shaped workpieces during various operations. Its strong magnetic base, precision-ground surfaces, and ease of use make it invaluable in ensuring accuracy and stability in machining and inspection tasks.
Technical Specifications
