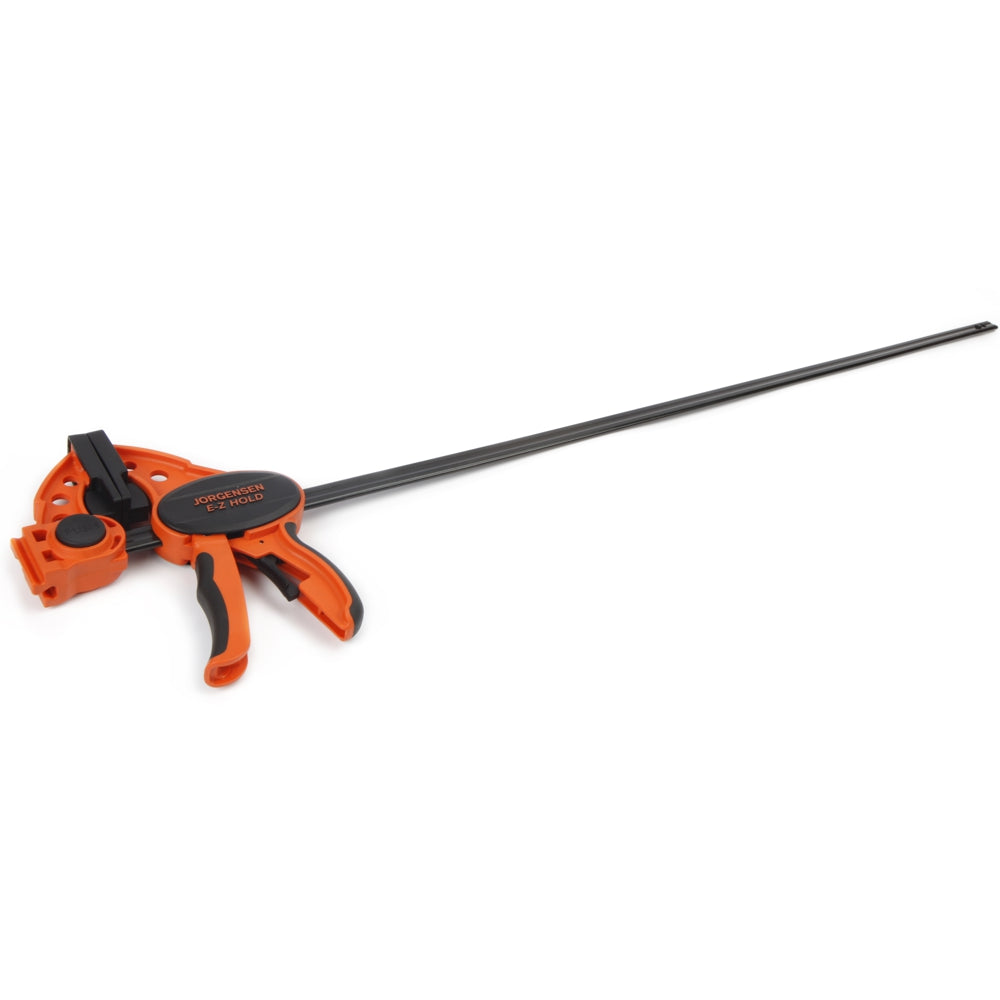

Jorgensen 36-Inch One-Handed Spreader Clamp [914 mm]
Information:
The first bar clamp to expand by joining two clamps together with no tools or added accessories needed. The patented head design allows any two Jorgensen Bar Clamps to be joined together for greater clamping capacity. By quickly flipping the head, you join two clamps together and also increase total clamping capacity by 6-Inch over the original two clamps.
Example: Two 12-Inch Bar Clamps joined together will give you one clamp with an 30-Inch capacity. With every two clamps you buy, it's like getting a third, larger clamp for free.
Features
- 36 Inch
- Exclusive, patented design
- 76% more clamping force
- Quick release button for fast and easy changeovers
- Spreader function
Instructions: How to combine two spreader clamps
Step 1
Remove the head of the clamp by pressing the marked 'Push' button.
Step 2
Flip the the head 180 degrees vertically and attach it to the clamp
Step 3
Do the same with the second clamp, attach the two clamps together using the dovetail on the end of each clamps'head
Step 4
All done! Feel free to watch the video for a more detailed instruction
| Product # | Max Opening | Reach | Clamping Force |
|---|---|---|---|
| #33406 | 154 mm (6') | 86 mm (3 3/8') | 136 kg (300 lb.) |
| #33412 | 305 mm (12') | 86 mm (3 3/8') | 136 kg (300 lb.) |
| #33418 | 457 mm (18') | 86 mm (3 3/8') | 136 kg (300 lb.) |
| #33424 | 600 mm (24') | 86 mm (3 3/8') | 136 kg (300 lb.) |
| #33436 | 864mm (36') | 86 mm (3 3/8') | 136 kg (300 lb.) |
