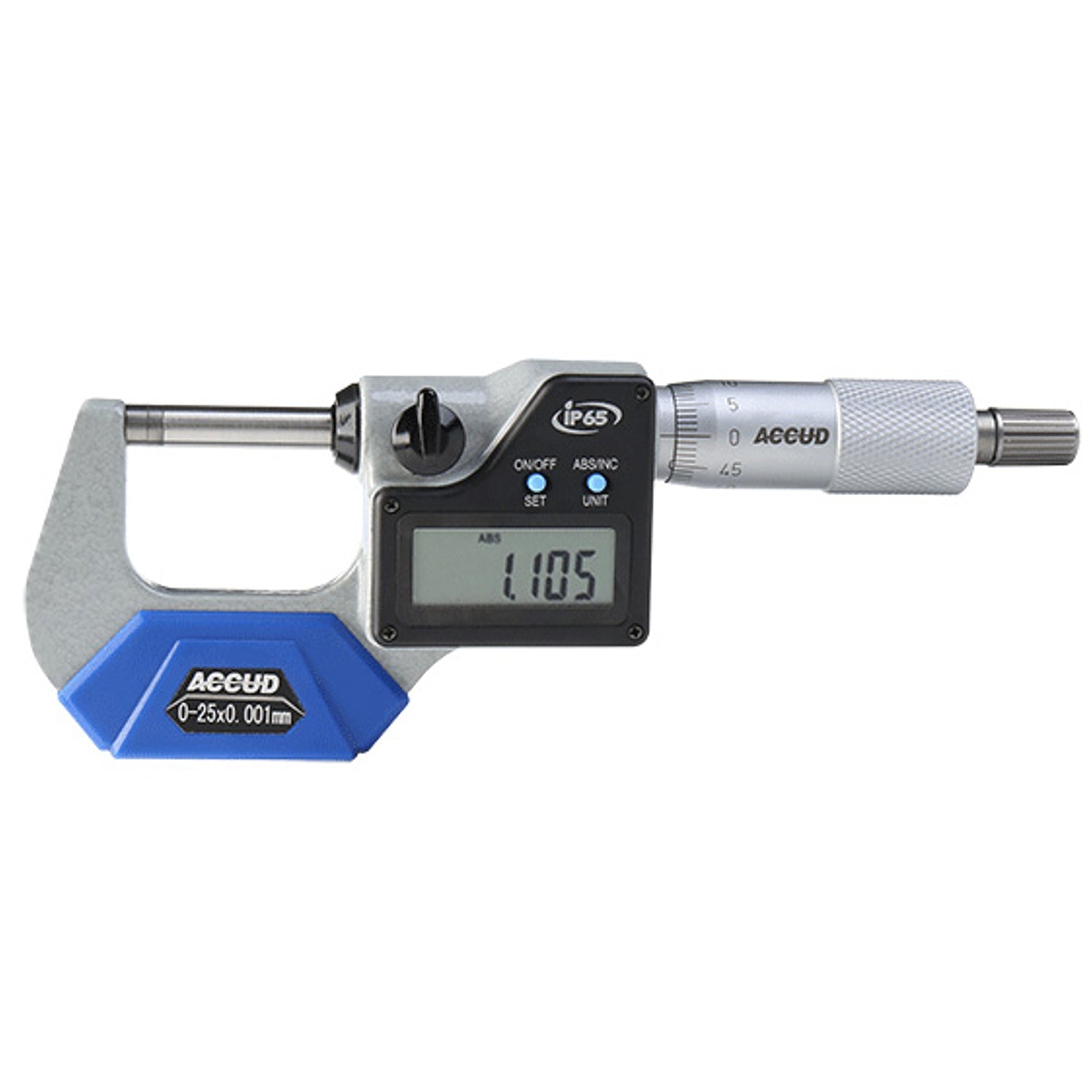

Digital Outside Micrometer 0 - 25mm
SERIES 313
SERIES 313
A digital outside micrometer is a precision measuring tool used to accurately measure the external dimensions of objects. It combines the accuracy of a traditional micrometer with the convenience of a digital display.
- Resolution: 0.001mm/0.00005'
- IP65 protection level
- Button: on/off, mm/inch,set, zero
- Automatic power off
- Carbide measuring faces, ratchet stop
- Setting standards are included(except 313-001-01)
Key Features:
- Digital display: Provides clear and easy-to-read measurements.
- Accuracy: Offers high precision for critical applications.
- Versatility: Can be used for various measurement tasks (length, diameter, thickness).
- Durability: Built to withstand industrial environments.
Technical Specifications
| Cat No | Range | Accuracy | a | c | h | L | Setting Standards |
|---|---|---|---|---|---|---|---|
| AC313-001-01 | 0-25mm/0-1' | ±2µm | 6 | 3 | 25 | 34.5 | - |
| AC313-002-01 | 25-50mm/1-2' | ±2µm | 8 | 3 | 32 | 59.5 | 25mm |
| AC313-003-01 | 50-75mm/2-3' | ±3µm | 8 | 3 | 44.5 | 84.5 | 50mm |
| AC313-004-01 | 75-100mm/3-4' | ±3µm | 8 | 3 | 57 | 109.5 | 75mm |
| AC313-005-01 | 100-125mm/4-5' | ±3µm | 10 | 3 | 70 | 135 | 100mm |
| AC313-006-01 | 125-150mm/5-6' | ±3µm | 10 | 3 | 82 | 160.5 | 125mm |
| AC313-007-01 | 150-175mm/6-7' | ±4µm | 12 | 5.5 | 94.5 | 186 | 150mm |
| AC313-008-01 | 175-200mm/7-8' | ±4µm | 12 | 5.5 | 107 | 211.5 | 175mm |
