SERIES 229

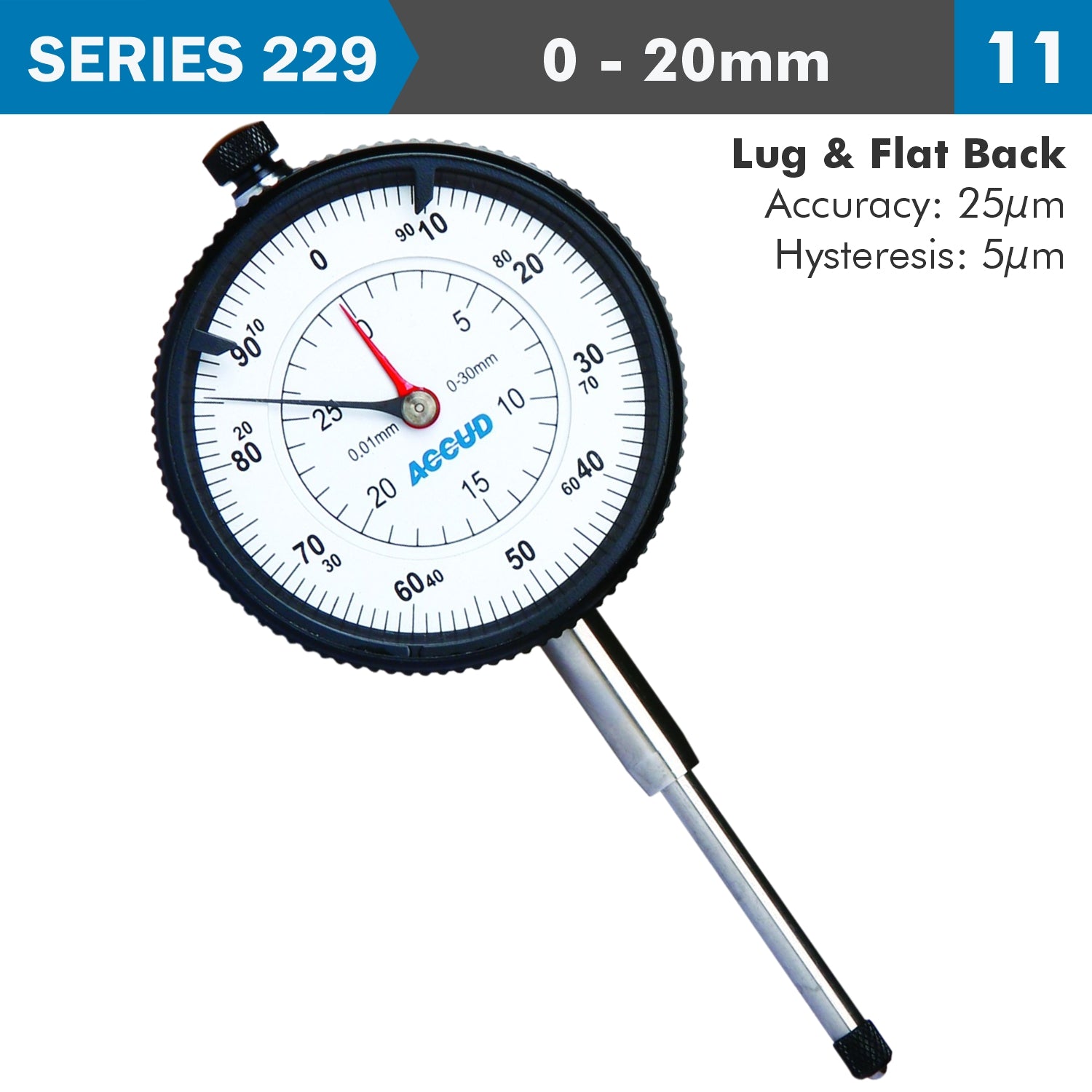

A dial indicator, also known as a dial gauge, is a precision measurement tool used to measure small linear distances and variations in distance. It converts the linear movement of its spindle into the rotational movement of a dial pointer, allowing for highly accurate readings.
Bezel: ⋄56mm
Graduation: 0.01mm with limit hands
Range: 0mm - 20mm
Accuracy: 25µm
Hysteresis: 5µm
Scale: 0 - 100
Back: lug and flat back
Manufacturer Cat No: 229-020-11
Applications
Dial indicators are widely used in various fields such as manufacturing, machining, and quality control for tasks including:
- Measuring the flatness, roundness, and alignment of parts.
- Checking runout, deflection, and thickness.
- Inspecting the precision of machine tools and fixtures.
- Comparing dimensions to ensure conformity to specifications.
The versatility and precision of dial indicators make them indispensable tools in any setting where accurate measurement of small distances is crucial.
Features at a glance
- Bezel: ⋄56mm
- Graduation: 0.01mm with limit hands
- Range: 0mm - 20mm
- Accuracy: 25µm
- Hysteresis: 5µm
- Scale: 0 - 100
- Back: lug and flat back
- Manufacturer Cat No: 229-020-11
