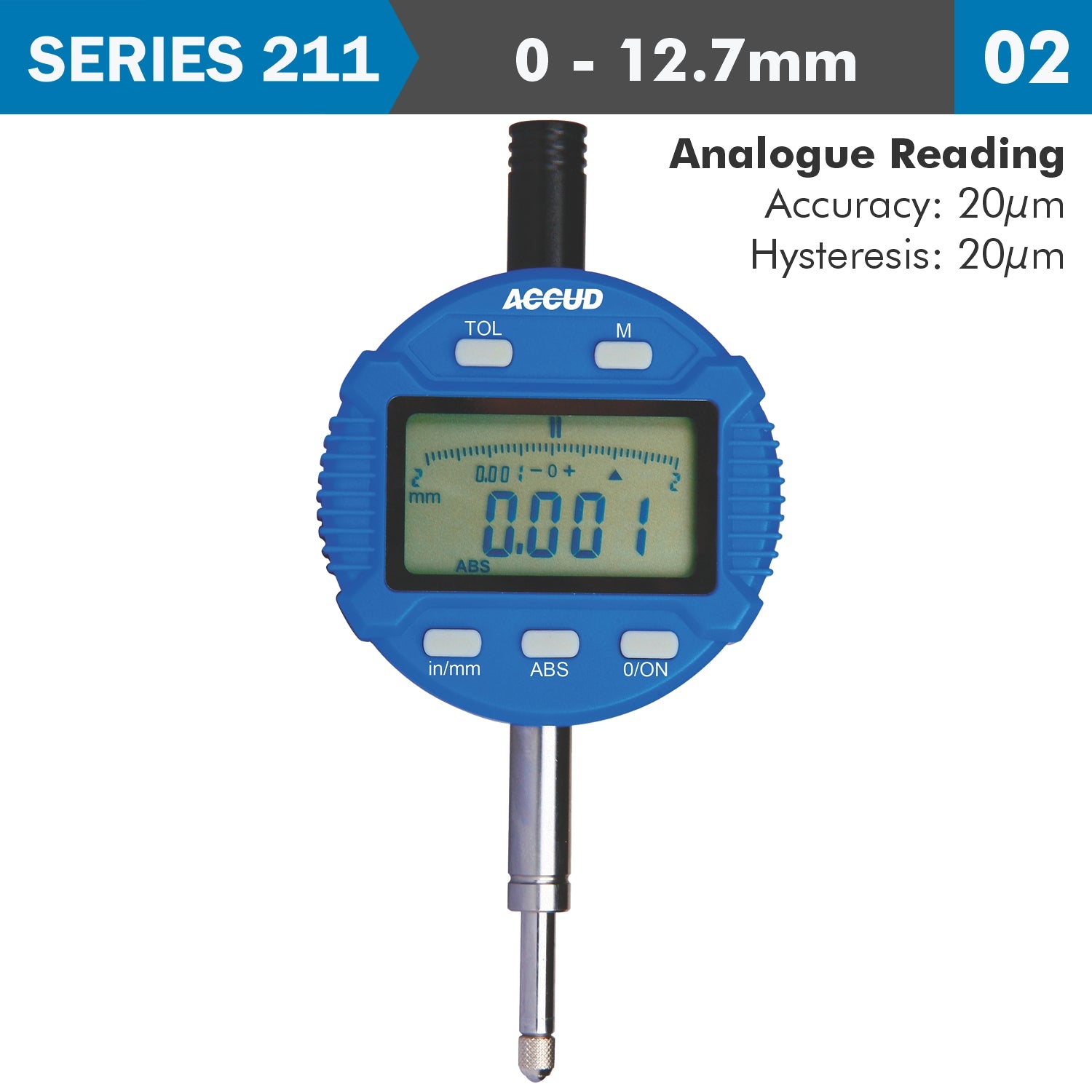

Flat Back Digital Indicator
20µm - 12,7mm range
SERIES 211-02
20µm - 12,7mm range
SERIES 211-02
Manufacturer Cat No: 211-010-02
Accuracy: 20µm - 12,7mm range
Digital indicator with a flat back by ACCUD, with measuring range 0-12.7mm / 0.5 'and resolution 0.001mm |
0.00005'.
Equipped with ABS function, i.e. the ability to measure against the set zero value.
The indicator is fitted with a data output port.
Features at a glance
Technical parameters:
| Description | Spec |
| Measurement range: | 0-12.7 mm / 0.5 ' |
| Resolution: | 0.001 mm / 0.00005 ' |
| Accuracy: | 20 μm |
| Hysteresis: | 20μm |
| Back: | Lug |
| ABS / INC function: | YES |
| On / Off button: | YES |
| Automatic shutdown: | YES |
| Tolerance set: | YES |
| Data output socket: | YES |
