SERIES 186
The Vernier Height Gauge is a precision measuring tool designed for accurately measuring vertical distances or heights of objects. This mechanical height gauge uses a finely graduated vernier scale, making it a reliable tool for professionals in machining, manufacturing, automotive, and engineering industries. The manual operation allows for high precision without relying on batteries, making it ideal for environments where electronic instruments are not suitable.

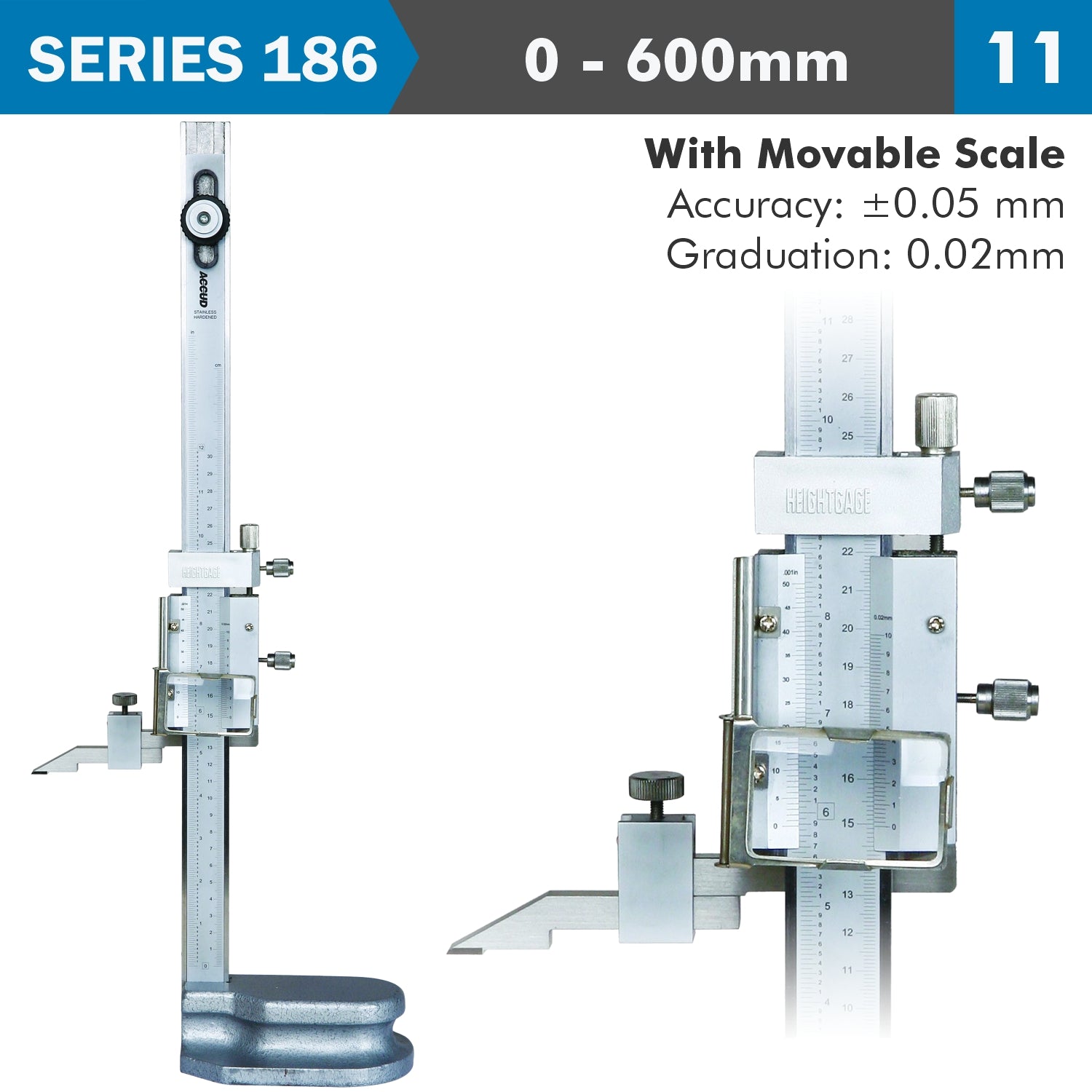

Manual Vernier Height Gauge by ACCUD with a measurement range 0-300mm / 12 inch and a graduation of 0.02 mm
equipped with a magnifying glass, which can reduce errors in the reading of measurements.
The column is made of stainless steel with chrome plated reading surface (scale) . Measuring tip - made of sintered carbide.
- Graduation: 0.02mm/0.001″
- Move main scale to set zero
- Carbide tipped scriber
- Made of stainless steel (except the base)
- Satin chrome plated scale
- With magnifier
- Optional accessory: 267 series clamps
Key Features:
- Precision Vernier Scale: The finely graduated vernier scale offers high accuracy with a graduation of 0.02mm (or 0.001 inches), providing detailed and precise measurements for critical applications.
- Durable Stainless Steel Construction: Made from hardened stainless steel, the height gauge is resistant to corrosion and wear, ensuring long-lasting performance even in tough industrial environments.
- Smooth Sliding Mechanism: The polished guide rail and precision-ground surfaces ensure smooth movement of the measuring head, making adjustments easy and accurate.
- Fine Adjustment Knob: The integrated fine adjuster allows for precise control when setting the measurement height, enabling accurate and consistent readings.
- Stable Base for Reliable Measurements: The large, solid base ensures the gauge remains stable on surface plates or work surfaces, reducing measurement errors caused by movement.
- Dual Measurement System: Marked with both metric (mm) and imperial (inches) units, providing flexibility for different regional standards and applications.
- Locking Screw for Retaining Measurements: The height gauge features a locking screw that secures the measurement in place, allowing for consistent and repeatable results during repetitive tasks.
- Zero Setting at Any Position: With the convenient movable scale, the gauge allows users to set the scale to zero.
At a glance
- Graduation: 0.02mm/0.001″
- Move main scale to set zero
- Carbide tipped scriber
- Made of stainless steel (except the base)
- Satin chrome plated scale
- With magnifier
- Optional accessory: 267 series clamps
Applications:
- Machining & Toolmaking: Perfect for measuring the height of parts, tools, and components during machining operations to ensure they meet design tolerances.
- Manufacturing & Quality Control: Essential for checking the height of components during production to ensure they meet specifications.
- Automotive & Aerospace: Used to measure the height of critical components, such as engine parts, transmissions, or aircraft components, where precision is key.
- Woodworking & Fabrication: Ideal for measuring and marking the height of materials and components in woodworking or metal fabrication projects.
- Mechanical Engineering: Helps engineers measure prototypes and parts during design, ensuring they meet exact height requirements.
The Vernier Height Gauge offers unmatched mechanical precision, durability, and versatility for professionals requiring accurate height measurements in environments where reliability is key. Its robust construction and finely graduated scale make it a dependable choice for a wide range of industrial applications.
Technical Specifications
| Description | Spec |
| Measurement range: |
0-600mm / 24' |
| Scale: | 0.02 mm / 0.001' |
| Accuracy: | ± 0.05 mm |
| Dimension a: | 41 mm |
| Dimension b1: | 180 mm |
| Dimension b2: | 54 mm |
| Dimension c: | 35 mm |
| Dimension h: | 85 mm |
| Dimension L: | 870 mm |
| Magnifier: | YES |
