SERIES 185

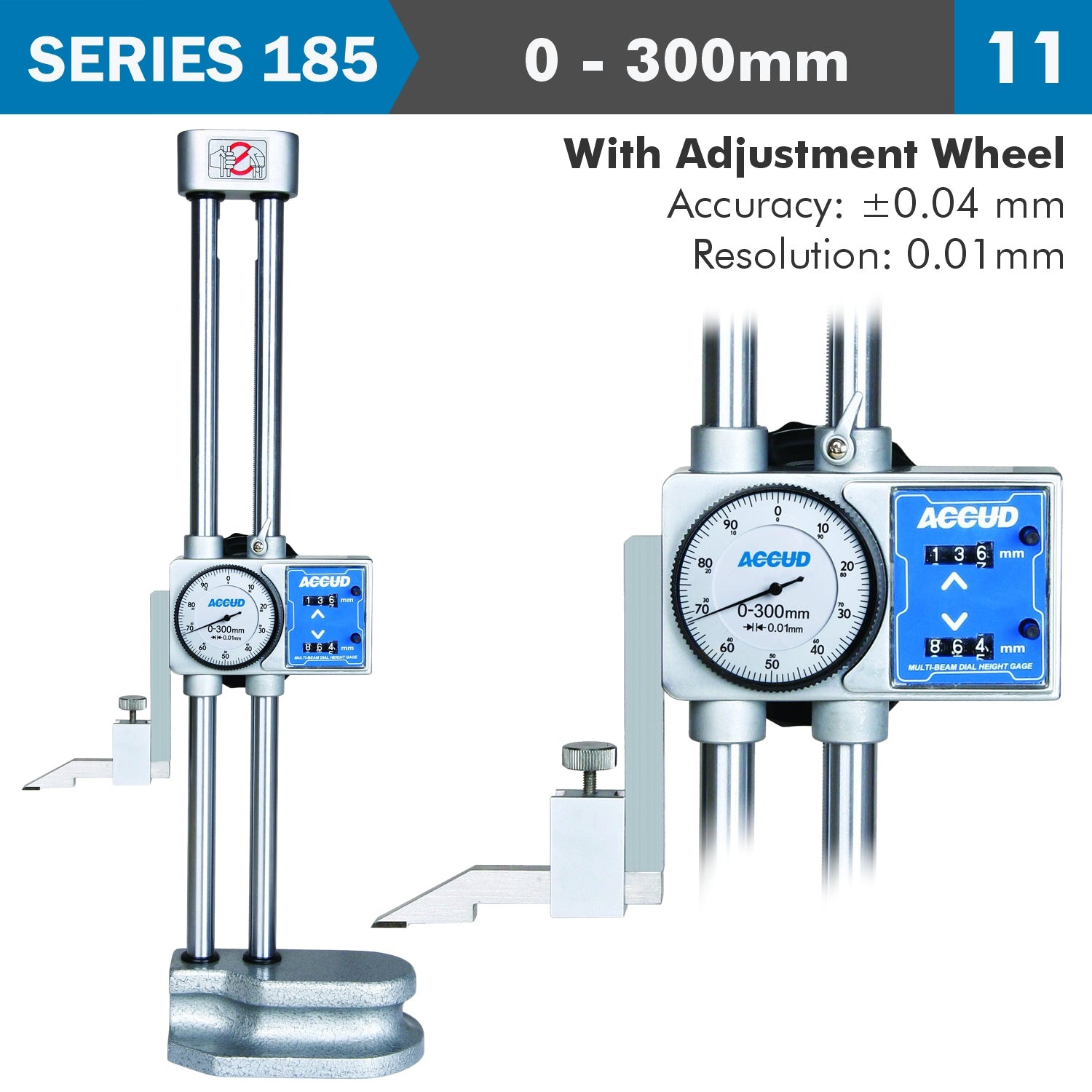

The Two-Column Dial Height Gauge is a precision measuring tool designed for high-accuracy height measurements, featuring a robust dual-column design for enhanced stability and accuracy. Unlike digital models, this height gauge uses a mechanical dial indicator for precise and reliable readings, making it ideal for professionals in machining, manufacturing, automotive, aerospace, and quality control who need durability and mechanical precision. The dual-column structure ensures minimal deflection, allowing for consistent results when measuring tall or heavy objects.
- Indicator graduation: 0.01mm
- Carbide tipped scriber
- Made of stainless steel (except the base)
- With driving wheel
- Optional accessory: 267 series clamps
Key Features:
- Dual-Column Design for Enhanced Rigidity: The two-column structure provides exceptional stability and minimizes deflection, allowing for accurate measurements of larger and heavier components. This design ensures that even during extended height measurements, there is minimal deviation.
- Mechanical Dial Indicator: The dial indicator provides highly accurate and easy-to-read measurements without the need for batteries, making it reliable in environments where electronic instruments may not be suitable.
- Fine Adjustment Mechanism: The gauge is equipped with a fine adjustment knob, allowing for precise control over the movement of the measuring head, ensuring the highest level of accuracy in every measurement.
- Smooth Sliding Mechanism: The polished dual columns and precision-ground surfaces ensure smooth, friction-free movement for the measuring head, making it easy to adjust to the required measurement point.
- Large, Easy-to-Read Dial: The large analog dial is clearly marked for easy reading of measurements, providing a highly accurate and reliable method for tracking increments.
- Sturdy, Flat Base for Stability: The solid, flat base ensures that the height gauge remains stable on a surface plate or work surface, preventing any movement that could affect the measurement accuracy.
- Hardened Stainless Steel Construction: The gauge is made from durable stainless steel, offering resistance to corrosion and wear, which ensures long-term precision and performance, even in challenging industrial environments.
- Locking Screw for Secure Measurements: The built-in locking screw holds the measuring head in place once the desired measurement is achieved, allowing for consistent and repeatable results during repetitive tasks.
- Indicator graduation: 0.01mm
- Carbide tipped scriber
- Made of stainless steel (except the base)
- With driving wheel
- Optional accessory: 267 series clamps
Applications:
- Machining & Toolmaking: Ideal for measuring the height of large parts, tools, and components during machining operations, ensuring that finished parts meet design tolerances.
- Manufacturing & Quality Control: Used for inspecting the height of components during production to ensure consistency and compliance with specifications.
- Automotive & Aerospace: Suitable for measuring and inspecting larger components, such as engine parts or structural components, where precise height measurements are essential.
- Metalworking & Fabrication: Excellent for marking and measuring the height of materials and components in fabrication projects, ensuring that each part is cut and assembled with precision.
- Engineering & Design: Essential for prototype development and engineering applications where precise height measurements are required to meet design specifications.
The Two-Column Dial Height Gauge provides a combination of mechanical precision, stability, and durability for accurate height measurements, particularly in environments where reliability is key. Its sturdy dual-column construction, combined with the mechanical dial indicator, ensures precision and repeatability, making it a go-to tool for professionals in demanding industrial applications.
Technical Specifications
| Description | Spec |
| Measurement range: |
0-300 mm |
| Scale: | 0.01 mm |
| Counter: | one counter to measure on + and one to measure on - |
| Accuracy: | ± 0.04 mm |
| Dimension b1: | 135 mm |
| Dimension b2: | 43 mm |
| Dimension c: | 33 mm |
| Dimension d: | Ø 15 mm |
| Dimension h: | 84 mm |
| Dimension L: | 475 mm |
| Tracing tip: | YES |
