SERIES 182-11
The Two-Column Digital Height Gauge is an indispensable tool for professionals working with large or heavy components requiring highly accurate height measurements. Its stable dual-column design, digital precision, and robust construction make it a reliable choice in demanding industrial environments.

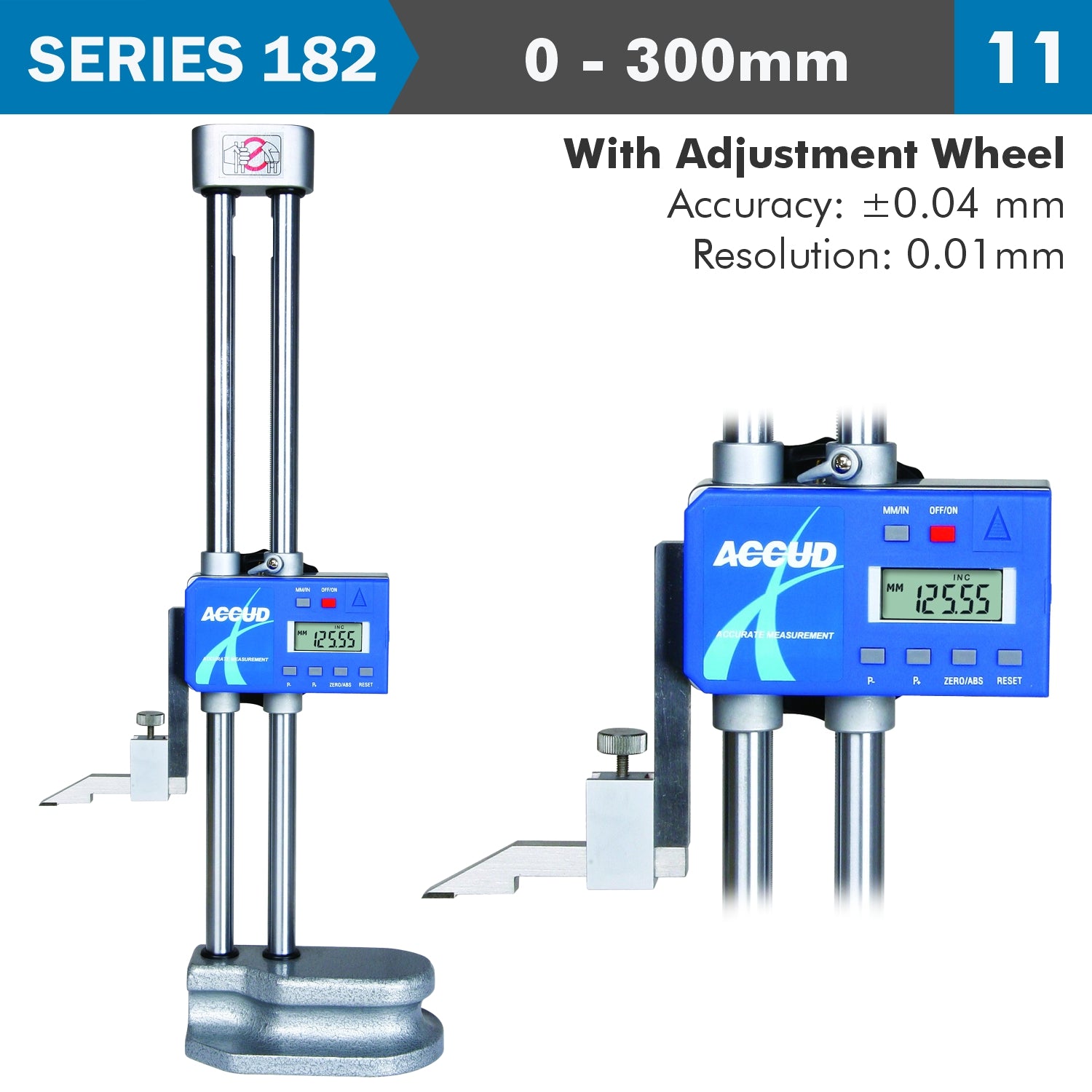

Digital Height Gauge with Data Output
Workshop electronic/digital
two-column height gauge by ACCUD, measuring range 0-300mm | 12' and resolution 0.01mm | 0.0005'.
The height gauge is equipped with ABS absolute measurement function, i.e. the ability to measure against the set zero value.
Adjustment is made by turning a guide knob on the back of the unit which also acts as the fine adjuster.
Made of stainless steel (except the base). Measuring tip - made of sintered carbide. Equipped with a data output port.
Made of stainless steel.
Key Features:
- Dual Column Design for Enhanced Stability: The two-column structure offers increased rigidity and stability, reducing flex and movement during measurement, making it ideal for large and heavy components.
- High-Precision Digital Display: The large, easy-to-read LCD screen offers fast, accurate readings with a resolution of up to 0.01mm (0.0005 inches), ensuring precise measurements with minimal effort.
- Extended Measurement Range: With the dual-column setup, the height gauge can measure taller components or parts, typically offering ranges from 0-300mm to 0-1000mm (0-12 inches to 0-40 inches), depending on the model.
- Dual Unit Measurement: Switch between metric (mm) and imperial (inches) units at the touch of a button, providing versatility to meet various regional and industrial standards.
- Zero Setting at Any Position: The zero-reset function allows the gauge to be set to zero at any height along its range, enabling relative and incremental measurements.
- Fine Adjustment Knob: The integrated fine adjustment mechanism allows for smooth, precise control over the measuring head's position, ensuring accuracy in fine measurements.
- Heavy-Duty Base for Stability: The sturdy, wide base provides a solid, flat platform that ensures stable and accurate measurements, even on uneven surfaces.
- Hardened Stainless Steel Construction: Built with durable stainless steel, the height gauge is highly resistant to corrosion and wear, designed to perform in tough industrial settings.
- Locking Screw for Consistent Measurements: The locking screw holds the measuring head securely in place, preventing accidental movement and ensuring repeatable, consistent measurements.
- Battery-Powered (LR44) with Auto-Off Feature: The battery-powered digital display includes an automatic shut-off feature to conserve battery life during periods of inactivity.
Features at a glance
Applications:
- Machining & Toolmaking: Perfect for measuring the height of large parts, tools, and components during machining operations, ensuring compliance with design specifications.
- Manufacturing & Quality Control: Essential for verifying part dimensions and heights during production, ensuring quality and consistency in large-scale manufacturing.
- Automotive & Aerospace: Used to measure and inspect larger components, such as engine parts or aircraft components, where precise height measurements are critical.
- Metalworking & Fabrication: Ideal for measuring or marking the height of materials and components in metal fabrication projects, ensuring accuracy in final cuts and assemblies.
- Engineering & Design: Useful for prototype development and engineering design to ensure that parts and prototypes meet exact height specifications.
The Two-Column Digital Height Gauge is an indispensable tool for professionals working with large or heavy components requiring highly accurate height measurements. Its stable dual-column design, digital precision, and robust construction make it a reliable choice for use in demanding industrial environments.
Technical Specifications
| Description | Spec |
| Measurement range: |
0-300mm / 12 in |
| Resolution: | 0.01 mm / 0.0005 ' |
| Accuracy: | +/- 0.04 mm |
| Mm / inch switch: | YES |
| ABS / INC function: | YES |
| On / Off / Zero button: | YES |
| Travel lock: | YES |
| Fine adjuster: | YES |
| HOLD function (hold result): | YES |
| Data output socket: | YES |
| Dimension a1: | 135 mm |
| Dimension a2 : | 43 mm |
| Dimension c : | 33 mm |
| Dimension Ød | 15 mm |
| Dimension h : | 84 mm |
| Dimension L: | 475 mm |
| Construction: | stainless steel tracer tip - carbide |
