SERIES 181-11
The Digital Height Gauge is a precision measuring tool designed for accurately measuring vertical distances or heights of objects in machining, engineering, automotive, and manufacturing applications. With a high-resolution digital display, this height gauge allows for easy, precise readings, making it an essential tool for professionals requiring accuracy and reliability. It is ideal for measuring part dimensions, marking out, or checking the height of components on a surface plate.

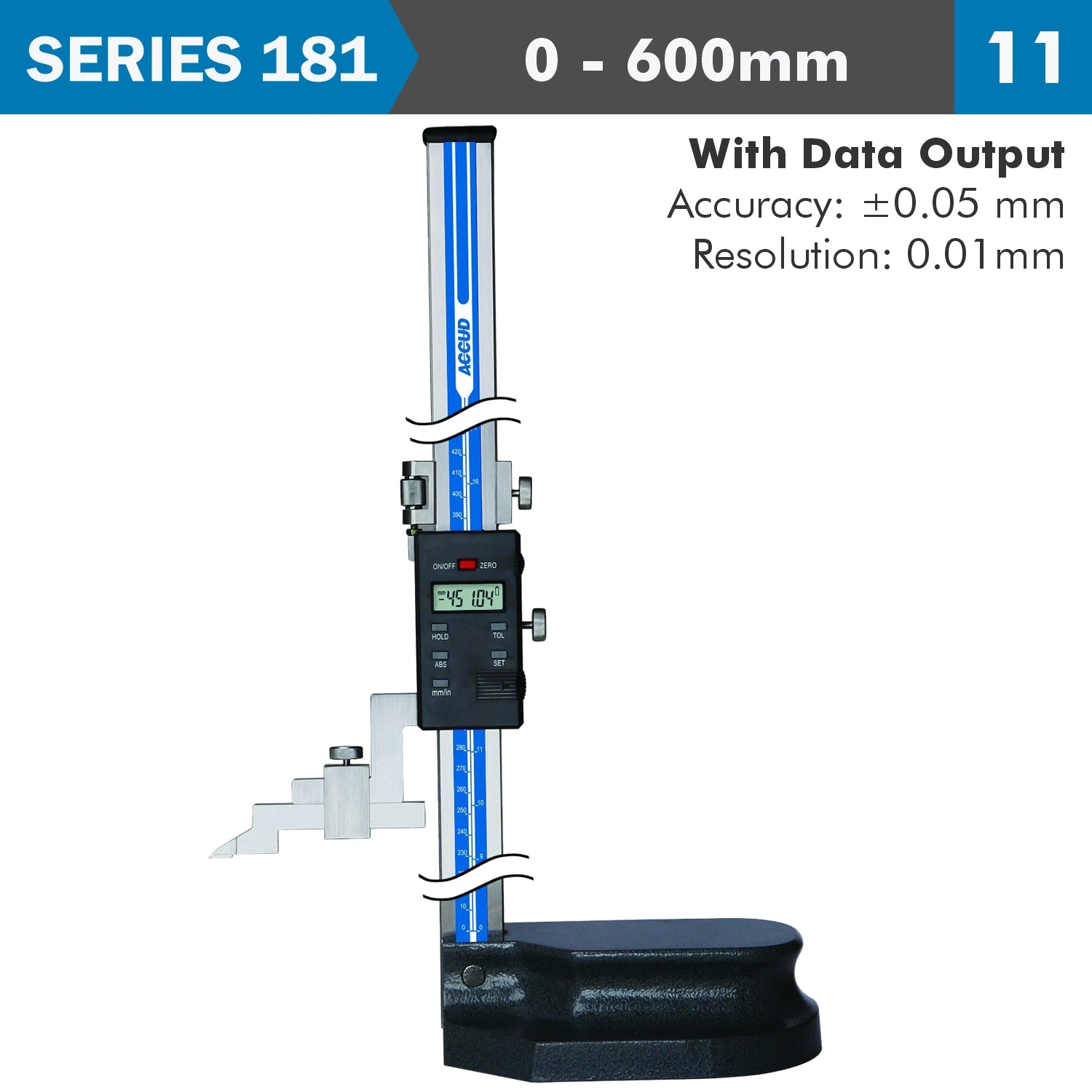

Digital Height Gauge with Data Output
Workshop electronic/digital height gauge by ACCUD,
measuring range 0-600mm | 24' and resolution 0.01mm | 0.0005'. The height gauge is
equipped with ABS absolute measurement function, i.e. the ability
to measure against the set zero value. Made of stainless steel (except the
base). Measuring tip - made of sintered carbide. Equipped with a data output port.
Made of stainless steel.
Additionally in the set - the tip with the sensor holder, with a hole with a diameter of 8 mm.
Features at a glance
Key Features:
- High-Precision Digital Display: The large, easy-to-read LCD screen offers clear, accurate readings with a resolution of up to 0.01mm (0.0005 inches), reducing measurement errors and increasing efficiency.
- Dual Measurement Units: Easily switch between metric (mm) and imperial (inch) units with a simple button press, providing flexibility for a wide range of applications.
- Zero Setting at Any Position: The zero reset function allows users to set the gauge to zero at any point along the measurement range, making it easy to take incremental measurements or comparative readings.
- Fine Adjustment Mechanism: Equipped with a fine-tuning adjustment wheel, the height gauge ensures precise control when positioning the measuring head, improving the accuracy of measurements.
- Sturdy Base for Stability: The solid, flat base ensures the gauge remains stable on surface plates or work surfaces, providing consistent and reliable measurements.
- Hardened Stainless Steel Construction: Made from premium stainless steel, the height gauge is durable, corrosion-resistant, and built to withstand harsh industrial environments.
- Locking Screw for Secure Measurements: The built-in locking screw secures the measuring head in place, ensuring stable, consistent readings during repetitive tasks.
- Battery-Powered with Auto-Off Function: The gauge is powered by a long-lasting LR44 battery and features an automatic shut-off function to conserve energy when the gauge is not in use.
Applications:
- Machining & Toolmaking: Perfect for measuring part dimensions, heights, and clearances in machining operations to ensure parts are within tolerance.
- Manufacturing & Quality Control: Essential for checking the height of components during production and verifying that parts conform to design specifications.
- Automotive & Aerospace: Used to measure critical components in engines, transmissions, and other mechanical systems where precise height measurements are essential.
- Engineering & Design: Useful for product development and engineering to ensure that prototypes and parts meet precise height requirements.
- Metalworking & Fabrication: Ideal for measuring and marking the height of materials, ensuring accuracy in fabrication projects.
The Digital Height Gauge provides precision, convenience, and reliability for professionals who need accurate height measurements. Its digital display, fine adjustment features, and durable construction make it a valuable tool in industries that demand high standards of measurement.
Technical Specifications
| Description | Spec |
| Measurement range: |
0-600mm / 24 in |
| Resolution: | 0.01 mm / 0.0005 ' |
| Accuracy: | ± 0.05 mm |
| Mm / inch switch: | YES |
| ABS / INC function: | YES |
| On / Off / Zero button: | YES |
| Travel lock: | YES |
| Fine adjuster: | YES |
| HOLD function (hold result): | YES |
| Data output socket: | YES |
| Dimension a1: | 103 mm |
| Dimension a2 : | 25 mm |
| Dimension b1 : | 180 mm |
| Dimension b2 : | 55 mm |
| Dimension c : | 30 mm |
| Dimension h : | 95 mm |
| Dimension L: | 820 mm |
| Construction: | stainless steel tracer tip - carbide |
| Included: | instrument, tracer tip, tip with sensor holder |
