SERIES 177

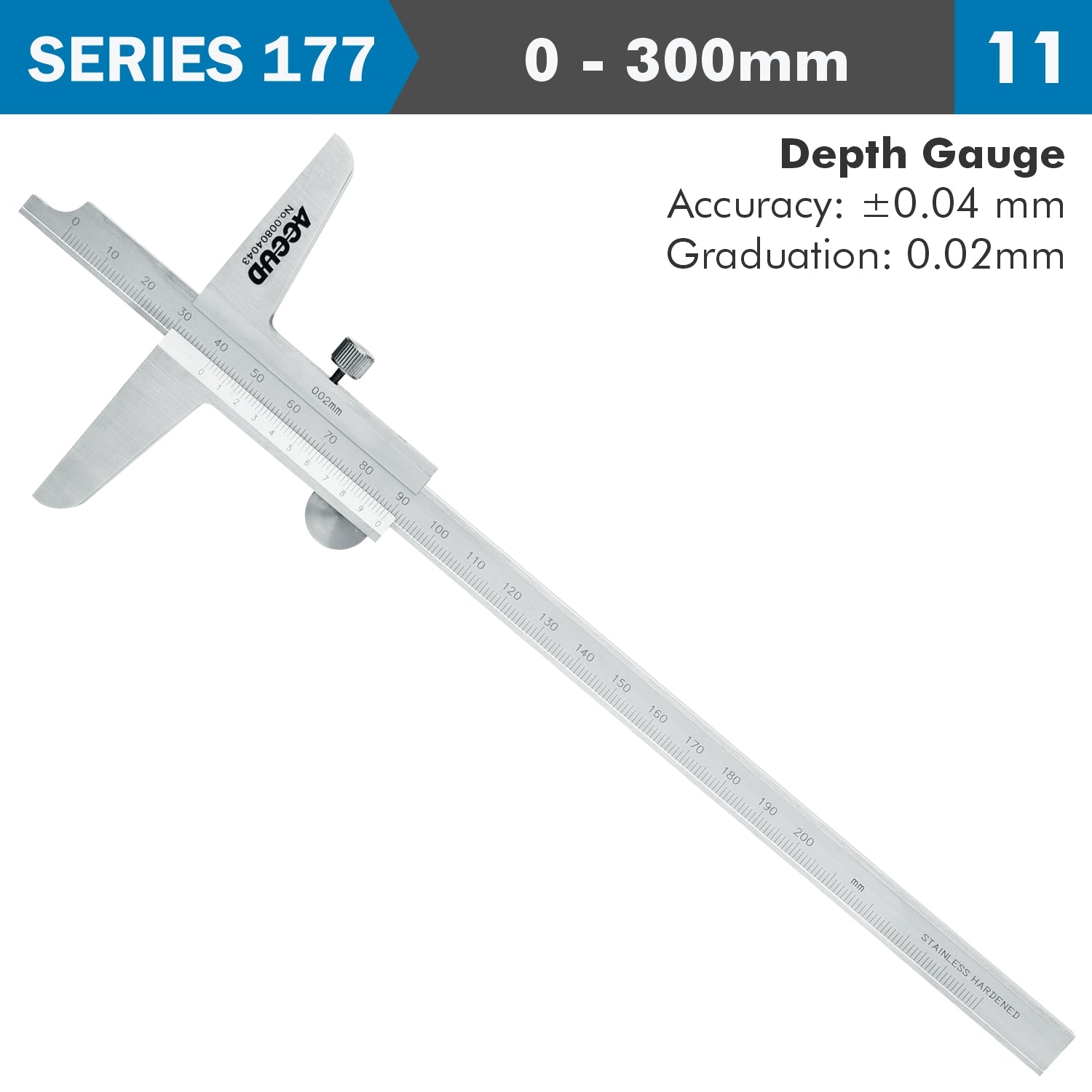

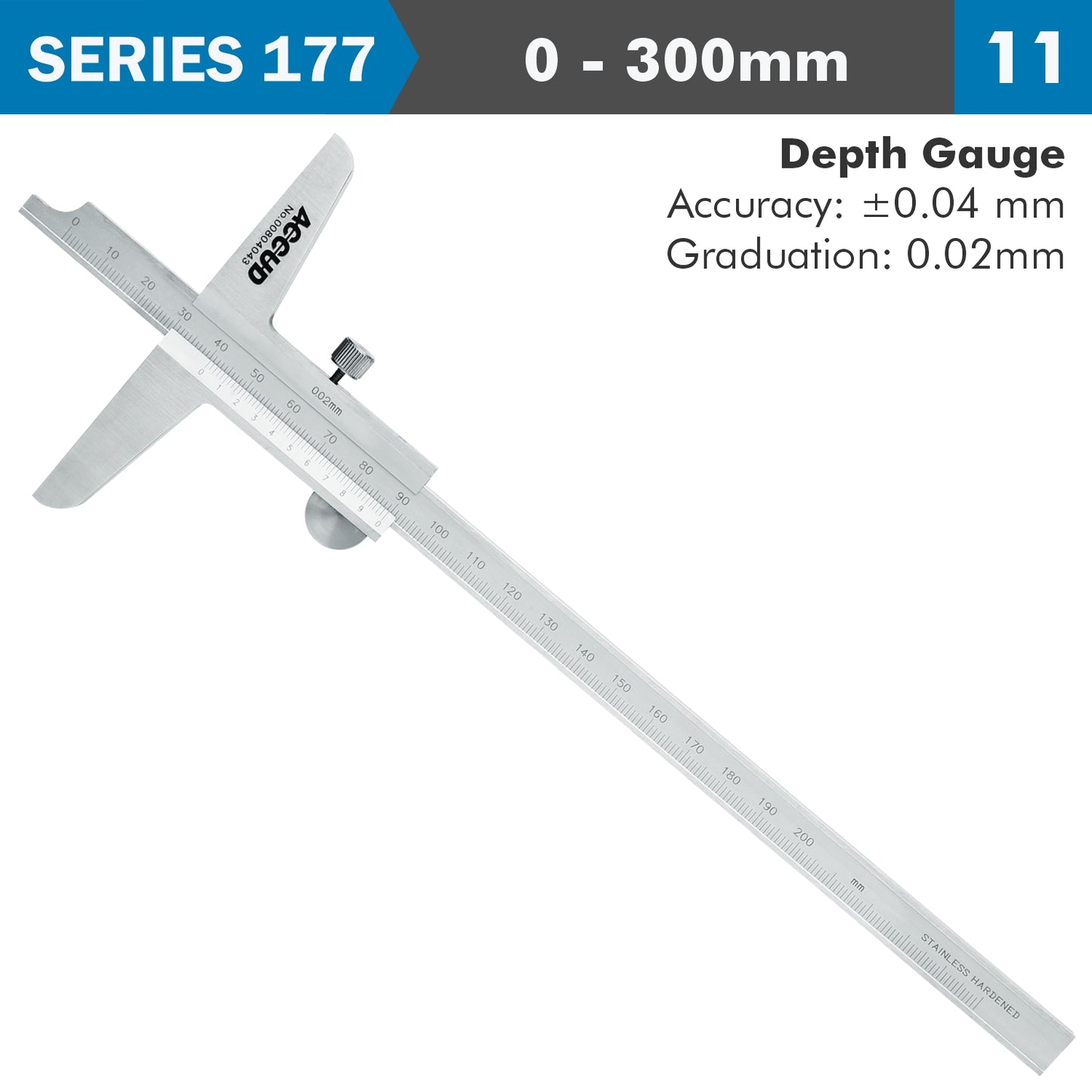

The Vernier Depth Caliper is a precision tool designed for accurately measuring the depth of holes, grooves, slots, and recesses. Unlike digital models, this manual caliper uses a vernier scale for detailed and reliable readings, making it an ideal instrument for professionals who value mechanical precision in machining, manufacturing, automotive, and engineering. With its durable construction and simple, efficient design, the Vernier Depth Caliper provides consistent, long-lasting performance for a variety of depth measurement tasks.
- Graduation: 0.02mm
- Made of stainless steel
- Satin chrome plated reading surface
Key Features:
- Precision Vernier Scale: The caliper features a finely graduated vernier scale, allowing for precise depth measurements with a resolution of up to 0.03mm. This classic measurement system ensures accuracy without the need for batteries.
- Durable Stainless Steel Construction: Built from hardened stainless steel, the caliper is resistant to corrosion and wear, ensuring durability and accuracy over time, even in harsh industrial environments.
- Smooth Sliding Mechanism: The polished guide rail and depth rod ensure smooth, friction-free sliding, making adjustments precise and easy to perform.
- Locking Screw for Retaining Measurements: The caliper includes a locking screw to secure the measurement in place, ensuring consistent readings during repetitive measurement tasks.
- Compact and Portable: Lightweight and easy to carry, the Vernier Depth Caliper is portable enough for use in the workshop, on-site, or in the field.
- Graduation: 0.02mm
- Made of stainless steel
- Satin chrome plated reading surface
Applications:
- Machining & Toolmaking: Ideal for measuring the depth of drilled holes, slots, and recesses in metal, ensuring that parts meet precise machining specifications.
- Automotive Repair & Maintenance: Used to measure the depth of recesses in engine components, brake systems, and other automotive parts to ensure they meet exact depth tolerances.
- Manufacturing & Quality Control: Essential for verifying depth specifications during production and ensuring that finished parts conform to design requirements.
- Woodworking & Carpentry: Useful for measuring the depth of grooves, mortises, and other recessed features in woodworking projects, ensuring precise craftsmanship.
- Mechanical Engineering: Helpful for measuring the depth of various features in engineering components, ensuring accuracy in both design and assembly.
The Vernier Depth Caliper is a trusted, dependable tool for professionals who need accurate and repeatable depth measurements without relying on electronic components. Its robust design, precision scale, and ease of use make it a must-have tool in machine shops, automotive repair facilities, and engineering workshops.
Technical Specifications
| Description | Spec |
| Measurement range: | 0 - 300 mm |
| Graduation: | 0.02 mm |
| Accuracy: | ± 0.04 mm |
| The length of the jaws h: | 100 mm |
| Dimension L: | 382 mm |
| Lock type: | Screw Knob |
| Fine adjuster: | NO |
| Construction: | hardened stainless steel |
| Included: | Caliper |
