SERIES 174

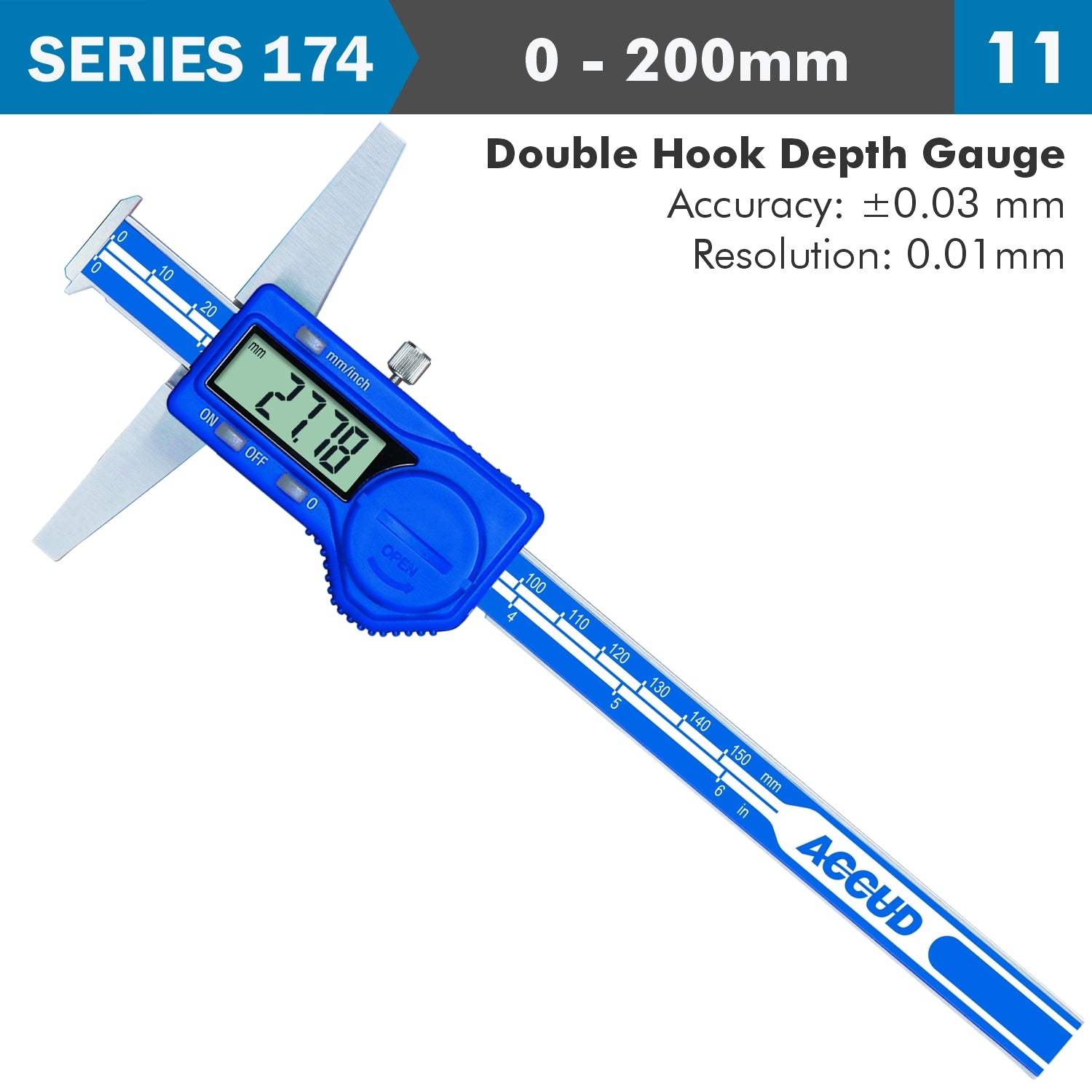

The Double Hook Depth Gauge is a specialized measuring tool designed to provide precise depth measurements of grooves, slots, and recessed areas from two opposite directions, thanks to its dual hook design. This tool is ideal for professionals working in industries such as machining, automotive, aerospace, woodworking, and manufacturing, where high accuracy and the ability to measure complex, hard-to-reach areas are crucial. The gauge's double hook configuration ensures versatility and flexibility, making it suitable for measuring internal and external recesses with ease.
- The depth gauge allows measuring in hard-to-reach places and grooves
- Resolution: 0.01mm | 0.0005 in
- Automatic power OFF
- Buttons: on/off, zero, mm/inch
- Data output (cable code:100-11or 100-12)
- Made of stainless steel
Key Features:
- Double Hook Design for Versatile Measurement: Equipped with two hooks facing in opposite directions, this depth gauge allows for accurate measurement of both internal and external grooves, slots, and recesses, making it ideal for complex measurement tasks.
- Precise Depth Measurement: With a high-resolution digital display (on digital models) or a finely graduated scale (on manual models), the gauge provides accurate readings down to 0.01mm (0.0005 inches) for reliable results.
- Dual Unit System: Easily switch between metric (mm) and imperial (inch) units, giving users flexibility for different regional standards or project requirements.
- Zero Setting at Any Position: The zero reset function enables users to set the gauge to zero at any point, allowing for incremental or differential measurements, which is useful for comparative analysis or step depth measurements.
- Durable Stainless Steel Construction: Built with high-quality stainless steel, this gauge is both corrosion-resistant and durable, ensuring long-lasting performance in demanding industrial environments.
- Locking Screw for Secure Measurements: The integrated locking screw keeps the measurement fixed, allowing for consistent and repeatable readings without any accidental slippage.
- Smooth Sliding Mechanism: The finely polished surfaces ensure smooth movement of the hooks, making depth adjustment easy and precise during use.
- Battery-Powered with Auto-Off (Digital Models): Digital models include a long-life battery with an automatic shut-off function to conserve power when the gauge is not in use.
- The depth gauge allows measuring in hard-to-reach places and grooves
- Resolution: 0.01mm | 0.0005 in
- Automatic power OFF
- Buttons: on/off, zero, mm/inch
- Data output (cable code:100-11or 100-12)
- Made of stainless steel
Applications:
- Machining & Toolmaking: Perfect for measuring the depth of internal and external grooves, slots, and recesses in metal, ensuring that components are machined to precise specifications.
- Automotive & Aerospace: Useful for measuring recessed areas in gears, shafts, and other parts within engines, transmissions, and mechanical systems that require precise depth readings.
- Woodworking & Joinery: Ideal for measuring the depth of grooves, mortises, and other recessed features in fine woodworking projects, ensuring accurate cuts and fittings.
- Quality Control & Inspection: Essential for inspecting the depth of grooves and slots during production and assembly, ensuring that manufactured parts meet design specifications.
- Mechanical Engineering: Used for measuring and inspecting parts with complex recesses or grooves, ensuring precision in both design and finished products.
The Double Hook Depth Gauge provides exceptional versatility, accuracy, and ease of use for professionals requiring detailed depth measurements from multiple angles. Its durable construction, dual-hook design, and high precision make it a must-have tool for industries that demand precision and reliability in measuring grooves, slots, and recessed areas. Whether you're working in a machine shop, on a production line, or in a woodworking studio, this gauge is designed to deliver accurate results with every use.
Technical Specifications
| Description | Spec |
| Measurement range: | 0 - 200 mm |
| Resolution: | 0.01mm | 0.0005 in |
| Accuracy: | ± 0.03 mm |
| The length of the jaws h: | 100 mm |
| Dimension L: | 283 mm |
| Lock type: | Screw Knob |
| Fine adjuster: | NO |
| Construction: | hardened stainless steel |
| Included: | Caliper |
