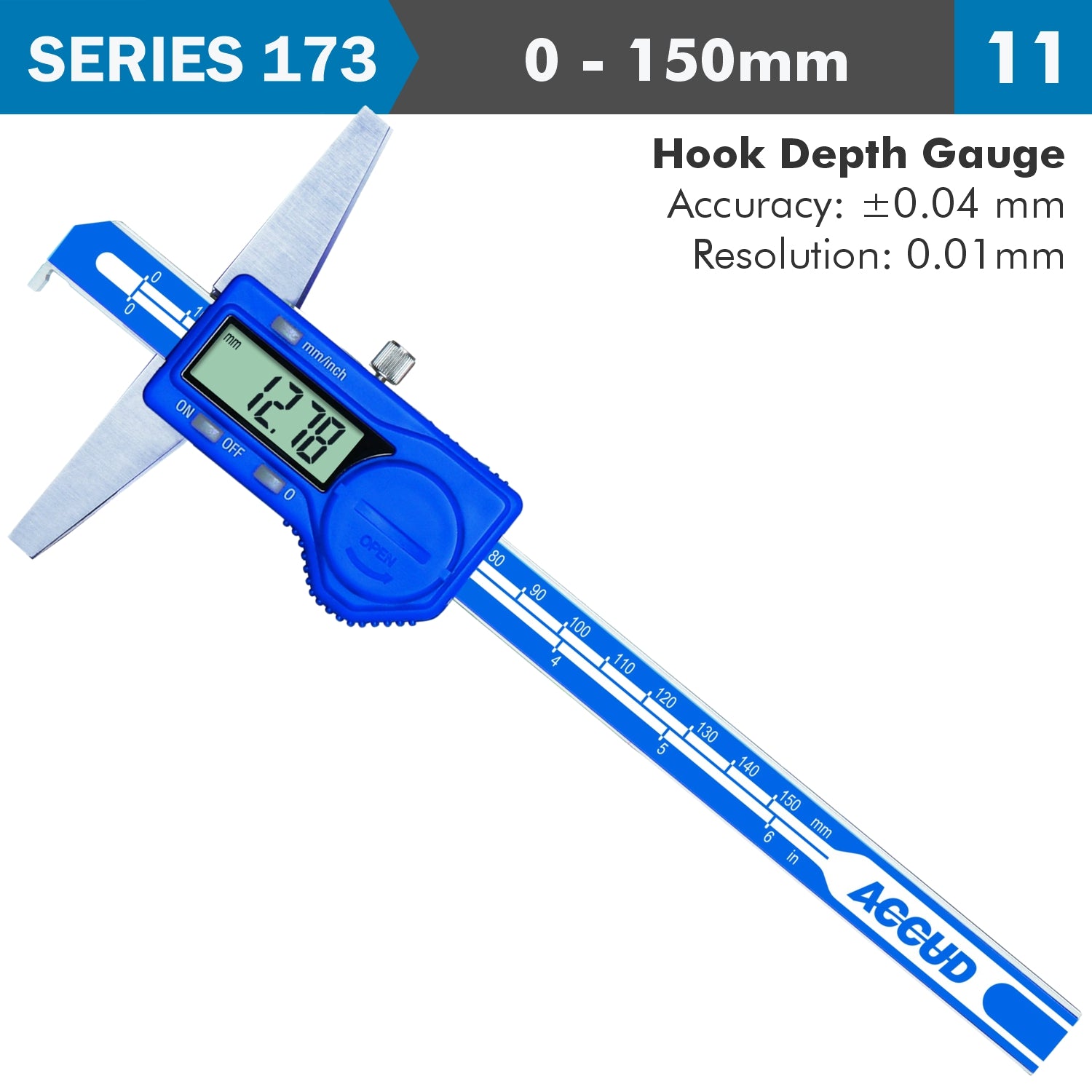

Digital Hook Type Depth Gauge 0 - 150 mm | ±0.04 Accuracy
SERIES 173
SERIES 173
The Digital Hook Depth Caliper is a precision measuring tool designed to measure the depth of grooves, slots, and edges with a hooked jaw for specialized applications. This tool is ideal for professionals in machining, woodworking, automotive, and manufacturing industries where accurate depth measurements of recesses or narrow channels are essential. Equipped with a digital display, the caliper offers quick and precise readings, making it a convenient and reliable tool for both detailed inspections and general use.
- Measure the depth of grooves
- Resolution: 0.01mm/0.0005″
- Automatic power on/off
- Buttons: on/off, zero, mm/inch
- Data output (cable code:AC100-11 or AC100-12)
- Made of stainless steel
Key Features:
- Hooked Measuring Jaw: The unique hooked design allows the caliper to measure the depth of grooves, slots, and recessed areas that are difficult to access with traditional depth gauges, providing specialized functionality.
- High Precision Digital Display: The large, easy-to-read digital display ensures accurate readings with a resolution of 0.01mm (0.0005 inches), making it simple to obtain precise depth measurements.
- Dual Unit Measurement: Easily switch between metric (mm) and imperial (inch) units, giving you flexibility in handling various measurement requirements and regional standards.
- Zero Setting Function: The caliper allows users to set the zero point at any position along the measuring range, enabling easy incremental measurements and differential comparisons.
- Stainless Steel Construction: Made from high-quality hardened stainless steel, the caliper is durable and resistant to corrosion, ensuring long-lasting performance in tough industrial environments.
- Locking Screw Mechanism: The integrated locking screw holds the hook in place after taking a measurement, preventing unintentional movement and ensuring consistent readings.
- Smooth Sliding Mechanism: A precision-polished guide ensures smooth movement along the measurement scale, allowing for fine adjustments and ease of use in all applications.
- Battery-Powered with Auto-Off Feature: Powered by a long-lasting CR2032 battery, the caliper also includes an auto-off function to preserve battery life, ensuring the tool is always ready when needed.
Technical Specifications
| Description | Spec |
| Measurement range: | 0 - 150 mm |
| Resolution: | 0.01mm | 0.0005 in |
| Accuracy: | ± 0.04 mm |
| The length of the jaws h: | 100 mm |
| Lock type: | Screw Knob |
| Fine adjuster: | NO |
| Dimension L: | 230 mm |
| Construction: | hardened stainless steel |
| Included: | Caliper |
SERIES 173 Applications Digital Hook Depth Caliper
