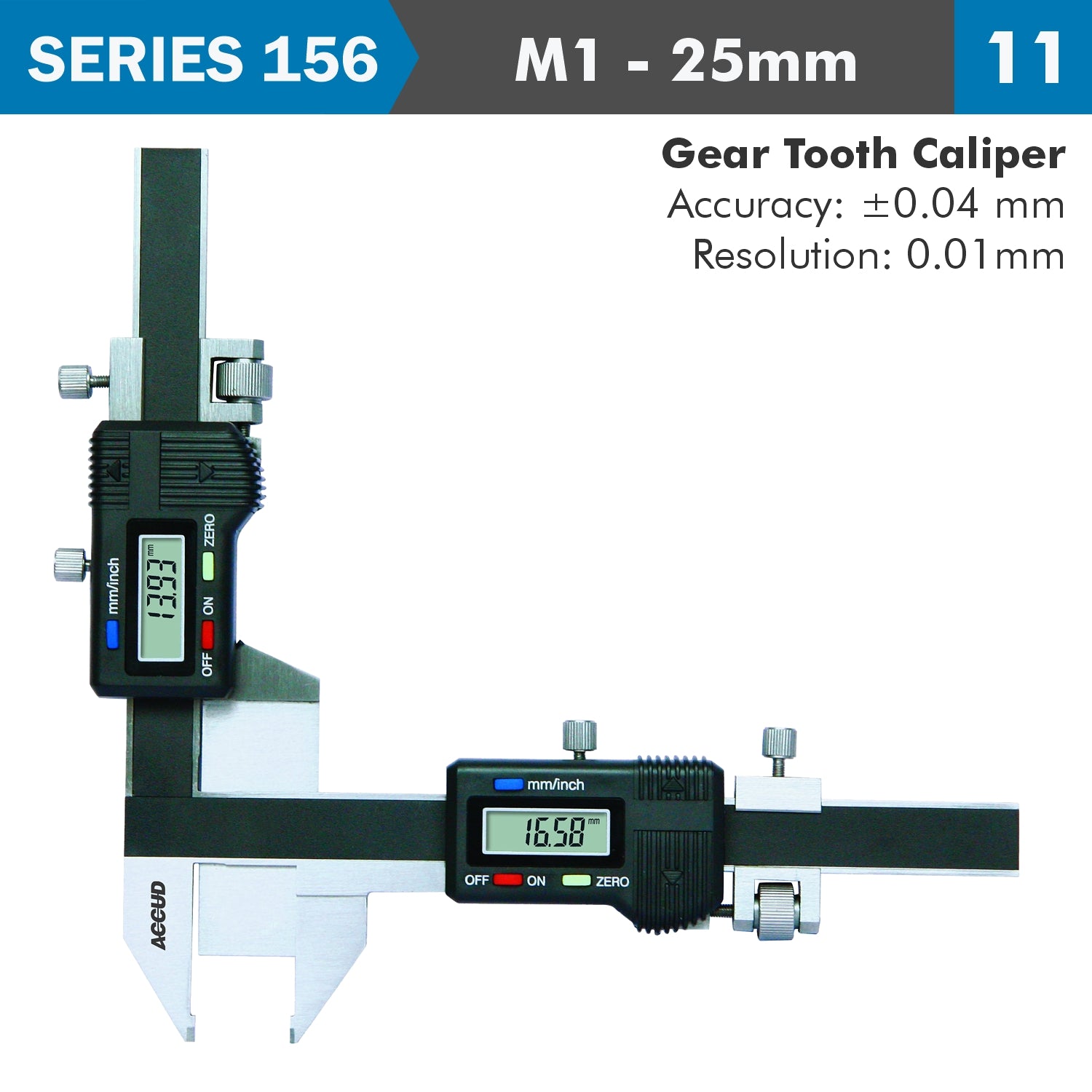

DIG. CALIPER M1-25MM OFFSET GEAR TOOTH 0.04MM ACC. 0.01MM RES. S/STEEL

Key Features:

• Digital Precision: Featuring a digital display, the caliper provides highly accurate measurements of gear tooth thickness and pitch with a resolution of 0.01mm (or 0.0005 inches), making it easy to capture precise data during inspection or production.
• Specialised Jaw Design: The jaws are uniquely designed for measuring the thickness of gear teeth and the spaces between them (tooth pitch), allowing for exact and reliable readings on gear modules ranging from M1 to 25mm.
• Dual Metric and Imperial Measurements: Seamlessly switch between metric (mm) and imperial (inch) units at the push of a button, offering flexibility for different measurement systems and user preferences.
• Zero Setting at Any Position: The zero function allows users to set the display to zero at any point along the caliper’s range, making it easy to take differential measurements or perform comparative readings on gear components.
• Durable Stainless Steel Construction: Made of high-quality stainless steel, the caliper is resistant to corrosion and wear, ensuring long-term use and reliability in industrial environments.
• Locking Screw for Consistent Measurements: The integrated locking screw allows you to hold measurements in place, preventing any accidental changes in jaw position when recording data or comparing parts.
• Smooth Sliding Mechanism: The finely polished surfaces ensure smooth movement along the measuring scale, providing frictionless and accurate jaw adjustments during use.
• Long-Lasting LR44 Battery with Auto-Off Function: The caliper is powered by a long-life battery and includes an automatic shut-off feature to conserve power when not in use.

Applications:

• Gear Manufacturing: Designed for measuring gear teeth thickness and tooth spacing (pitch) to ensure that gears are machined to exact specifications, reducing wear and enhancing performance.
• Automotive & Aerospace: Perfect for inspecting gears and other toothed mechanical components in engines, transmissions, and other systems where gear accuracy and performance are critical.
• Machining & Toolmaking: Used in precision machining to measure and inspect the teeth of gears, sprockets, and similar components, ensuring high precision in manufacturing processes.
• Quality Control & Inspection: Ideal for quality assurance departments to verify gear dimensions and ensure consistency and compliance with design specifications in mass production environments.
• Mechanical Engineering: Useful for gear design and research, allowing engineers to accurately measure gear components during prototyping and testing phases.

The Digital Gear Tooth Caliper M1 - 25mm is an indispensable tool for professionals who need to accurately measure and inspect the teeth and pitch of gears. Its digital accuracy, rugged stainless steel construction, and ergonomic design make it a perfect choice for those working in gear manufacturing, quality control, and various industrial applications requiring precise gear measurements.

Additional Information:

• Measurement Range: The caliper is designed to measure gear teeth thickness and pitch for modules ranging from M1 up to 25mm, making it suitable for a wide variety of gear sizes and applications.
• High Accuracy: With an accuracy of ±0.04mm, the caliper ensures precision for even the most detailed gear tooth measurements, which is critical for ensuring proper gear function and longevity.
• Ergonomic and Lightweight Design: Lightweight yet durable, the caliper is ergonomically designed for ease of use, reducing operator fatigue during extended use.
• Easy Unit Conversion: Instantly convert between metric and imperial units, allowing for seamless operation in diverse industrial settings where both systems may be required.

Technical Specifications
