SERIES 151

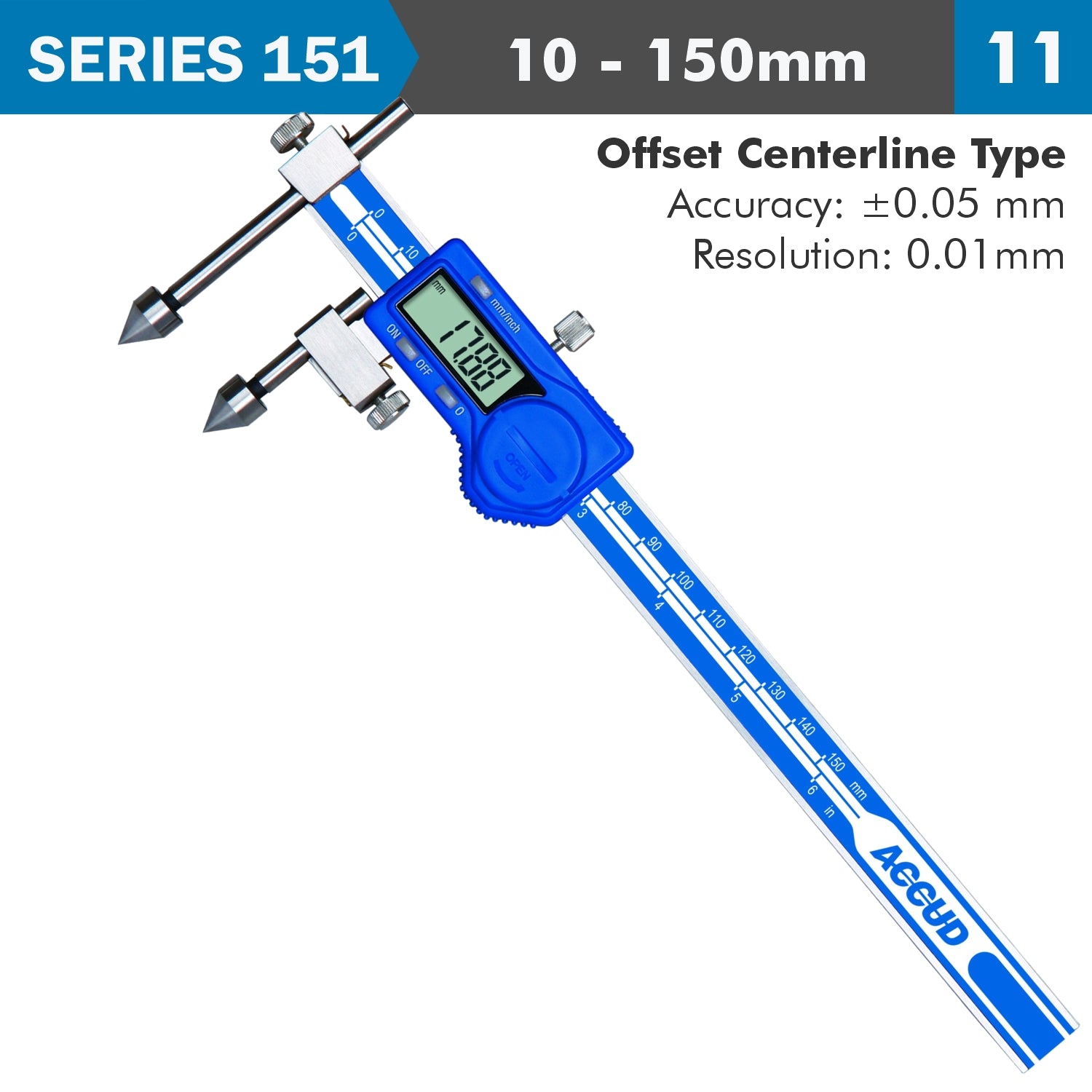

The Digital Offset Centerline Caliper is a specialized precision measuring tool designed for accurately determining the centerline of round or cylindrical objects, such as shafts, pipes, and holes. With a digital display for enhanced precision and ease of use, this tool is ideal for professionals in machining, engineering, manufacturing, and quality control who require accurate offset centerline measurements. Its offset design allows for easy access to difficult-to-reach centerlines, making it an indispensable tool for intricate measurements.
- Measure the hole center-to-center distance in same plane, or between offset planes
- Resolution: 0.01mm/0.0005″
- Automatic power on/off
- Buttons: on/off, zero, mm/inch
- Data output
- Made of stainless steel
Key Features:
- Digital Display for High Accuracy: The caliper provides precise digital readings with a resolution of up to 0.05mm, offering high accuracy for centerline measurements. The large LCD screen ensures easy reading of measurements, reducing the possibility of error.
- Offset Jaw Design: The offset design of the jaws makes it easy to access the centerline of round or cylindrical objects, especially when working in confined or hard-to-reach spaces.
- Dual Unit Measurement: Quickly switch between metric (mm) and imperial (inch) units, providing flexibility for various applications and industries.
- Zero Setting at Any Position: Allows users to set the caliper to zero at any position along the measuring range, enabling incremental measurements or differential readings with ease.
- Durable Hardened Stainless Steel Construction: Made from premium-grade stainless steel, the caliper is built to resist corrosion and wear, ensuring long-term durability even in demanding environments.
- Locking Screw Mechanism: The integrated locking screw helps secure the jaws in place, ensuring the measurement remains fixed, allowing for accurate data retention and easier documentation.
- Smooth Sliding Action: The precise, smooth sliding mechanism ensures easy adjustments and exact positioning of the jaws, guaranteeing consistent and repeatable measurements.
- Battery-Powered with Auto-Off: Powered by a CR2032 long-lasting battery, the caliper includes an auto-off function to conserve power when not in use, extending the time between battery replacements.
Applications:
- Machining & Toolmaking: Perfect for determining the centerline of cylindrical or round workpieces, ensuring accurate alignment and machining of components.
- Manufacturing & Quality Control: Used to measure the centerline of shafts, pipes, or holes in production lines, ensuring consistency and quality in mass production.
- Automotive & Aerospace: Ideal for determining the centerline of engine components, gears, and other mechanical parts to ensure proper alignment and functionality.
- Plumbing & Pipe Fitting: Useful for measuring the centerline of pipes and tubes to ensure proper alignment and fit during installation and repair work.
- Woodworking & Joinery: Invaluable for determining the centerline of cylindrical components in fine carpentry and furniture making, ensuring symmetry and precision in assembly.
The Digital Offset Centerline Caliper is an essential tool for professionals who need precise and easy-to-read measurements of centerlines. With its digital accuracy, ergonomic design, and robust construction, this caliper is a reliable choice for a wide range of industrial, mechanical, and craftsmanship applications. Whether you're in manufacturing or fieldwork, this tool ensures accurate, repeatable results for your most demanding projects.
Technical Specifications
| Description | Spec |
| Measurement range: | 10 - 150 mm |
| Resolution: | 0.01mm | 0.0005 in |
| Accuracy: | ± 0.05 mm |
| The length of the jaws h: | 32 mm |
| Lock type: | Screw Knob |
| Fine adjuster: | NO |
| Dimension L: | 236 mm |
| Construction: | hardened stainless steel |
| Included: | Caliper |
