SERIES 145

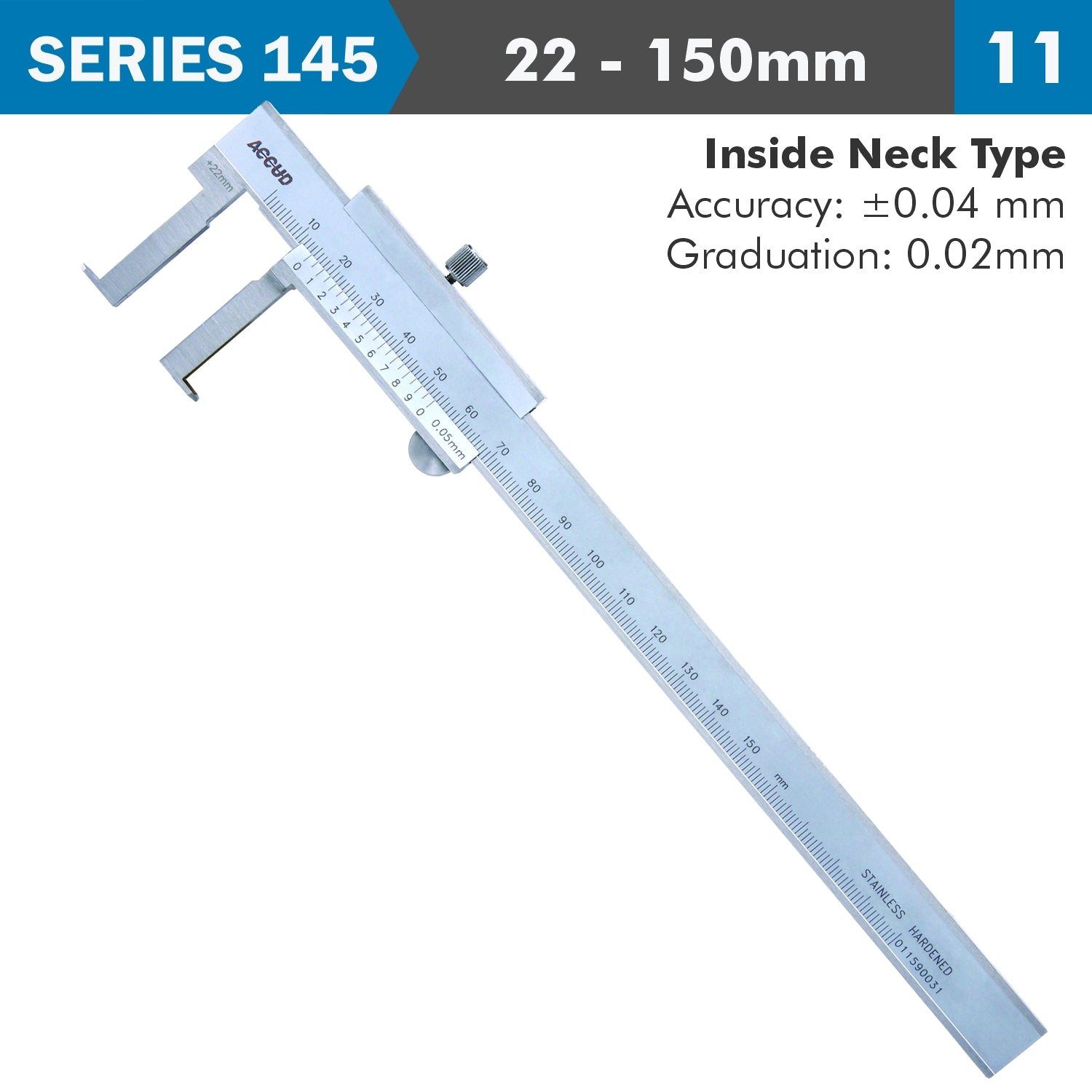

The Inside Groove Vernier Caliper is a specialised precision measuring tool designed to accurately measure the internal grooves, slots, and recesses of workpieces. This vernier caliper is essential for professionals in machining, engineering, manufacturing, and quality control who require high accuracy when measuring internal features. Its precise vernier scale and sharp jaws make it ideal for tasks where measuring internal grooves with pinpoint accuracy is critical.
- Manufacturer Cat No: 145-006-11
- Range: 22 mm - 150 mm
- Jaw length: 30 mm
- Graduation: 0.02 mm
- Accuracy: ±0,04 mm
Features at a glance
- Measure grooves.
- Graduation: 0.02mm
- Satin chrome plated reading surface
- Made of stainless steel
Applications:
- Machining & Fabrication: Ideal for measuring internal grooves and slots in precision components and machined parts to ensure that they meet strict tolerances and design specifications.
- Automotive & Aerospace: Perfect for measuring internal grooves in parts such as engine components, housings, and other critical mechanical parts that require exact measurements for safety and performance.
- Manufacturing & Quality Control: Useful for inspecting internal features of parts in production lines, helping maintain consistent quality and precision during mass production.
- Tool & Die Making: Suitable for measuring grooves and recesses in molds and dies, ensuring that each tool meets the required design specifications for high-quality production.
- Scientific & Laboratory Use: In research and development environments, the caliper can measure small internal features with high precision for accurate data collection.
The Inside Groove Vernier Caliper is a highly specialized tool designed for precision measurement of internal grooves and slots. With its sharp jaws, vernier scale accuracy, and durable construction, it is the go-to tool for professionals who need to measure internal dimensions with the highest level of accuracy. Perfect for use in a variety of industries, this caliper ensures that your work meets the strictest quality and precision standards.
Technical Specifications
| Description | Spec |
| Measurement range: | 22-150 mm |
| Graduation: | 0.02 mm |
| Accuracy: | ± 0.04 mm |
| The length of the jaws h: | 30 mm |
| Lock type: | Screw Knob |
| Fine adjuster: | NO |
| Dimension L: | 250 mm |
| Construction: | hardened stainless steel reading surface (scale, vernier) - stain chrome plated reading surface |
| Included: | Caliper |
