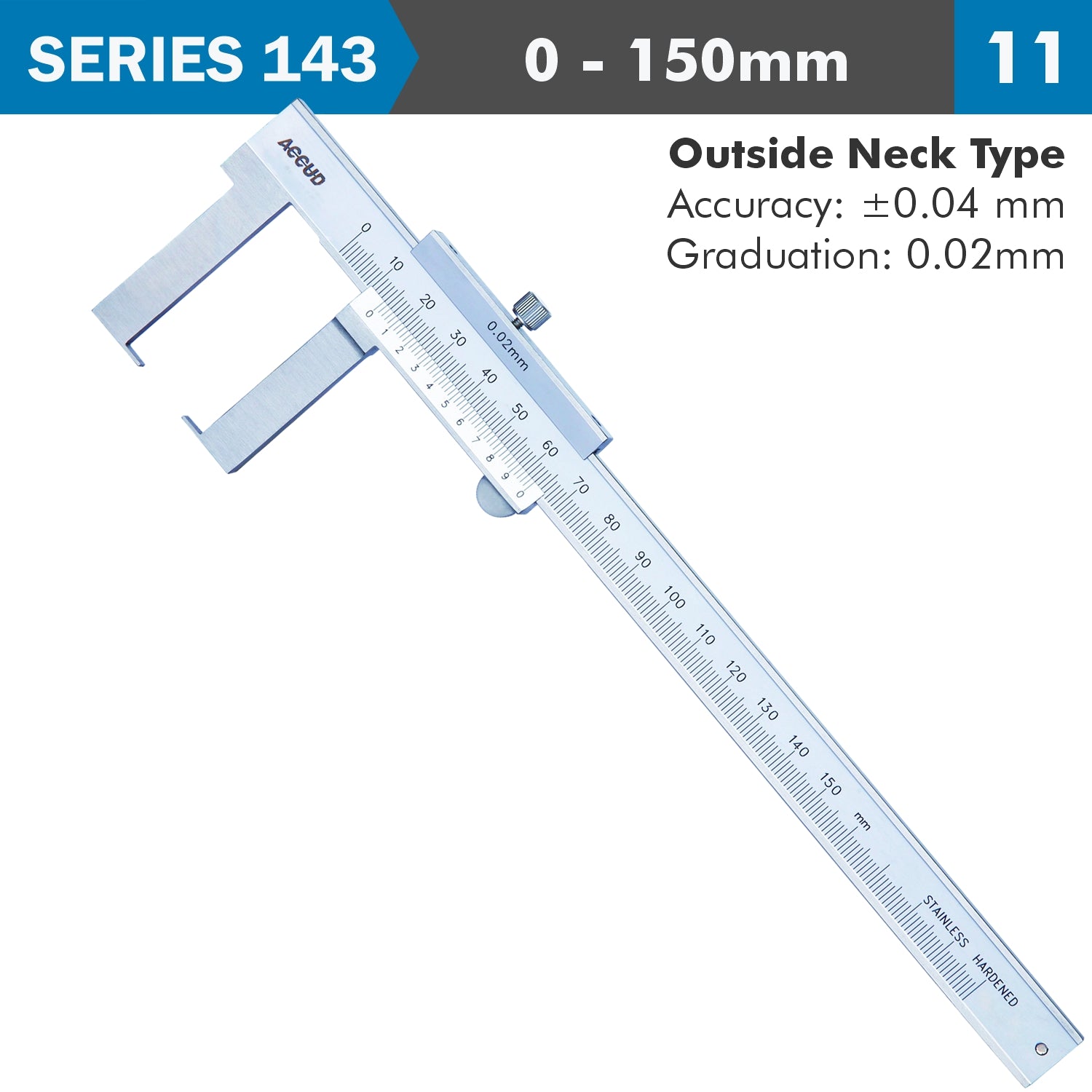

Outside Neck Vernier Caliper 150 mm
SERIES 143-11
SERIES 143-11
These calipers allow users to change the shape and size of jaw contact points so specialized measurements of internal and external grooves can be taken. Outside neck calipers have speciality jaws with matching inward-facing thin contact points for taking measurements of external grooves and recesses.
- Manufacturer Cat No: 143-006-11
- Range: 0 mm - 150 mm
- Jaw length: 40 mm
- Graduation: 0.02 mm
- Accuracy: ±0,04 mm
Workshop professional Outside Neck Vernier Caliper with measuring range 0 - 150 mm and measuring graduation 0.02 mm. Designed to measure wall thickness, grooves and recesses.
Chromed reading surface (scale and vernier). Made of stainless steel. This measuring tool is equipped with a screw type lock.
Made of stainless steel.
Features at a glance
- Measure wall thickness, grooves and recesses
- Graduation: 0.02mm
- Satin chrome plated reading surface
- Made of stainless steel
Technical Specifications
| Description | Spec |
| Measurement range: | 0-150 mm |
| Graduation: | 0.02 mm |
| Accuracy: | ± 0.04 mm |
| The length of the jaws h: | 40 mm |
| Lock type: | Screw Knob |
| Fine adjuster: | NO |
| Dimension L: | 250 mm |
| Construction: | hardened stainless steel reading surface (scale, vernier) - stain chrome plated reading surface |
| Included: | Caliper |
