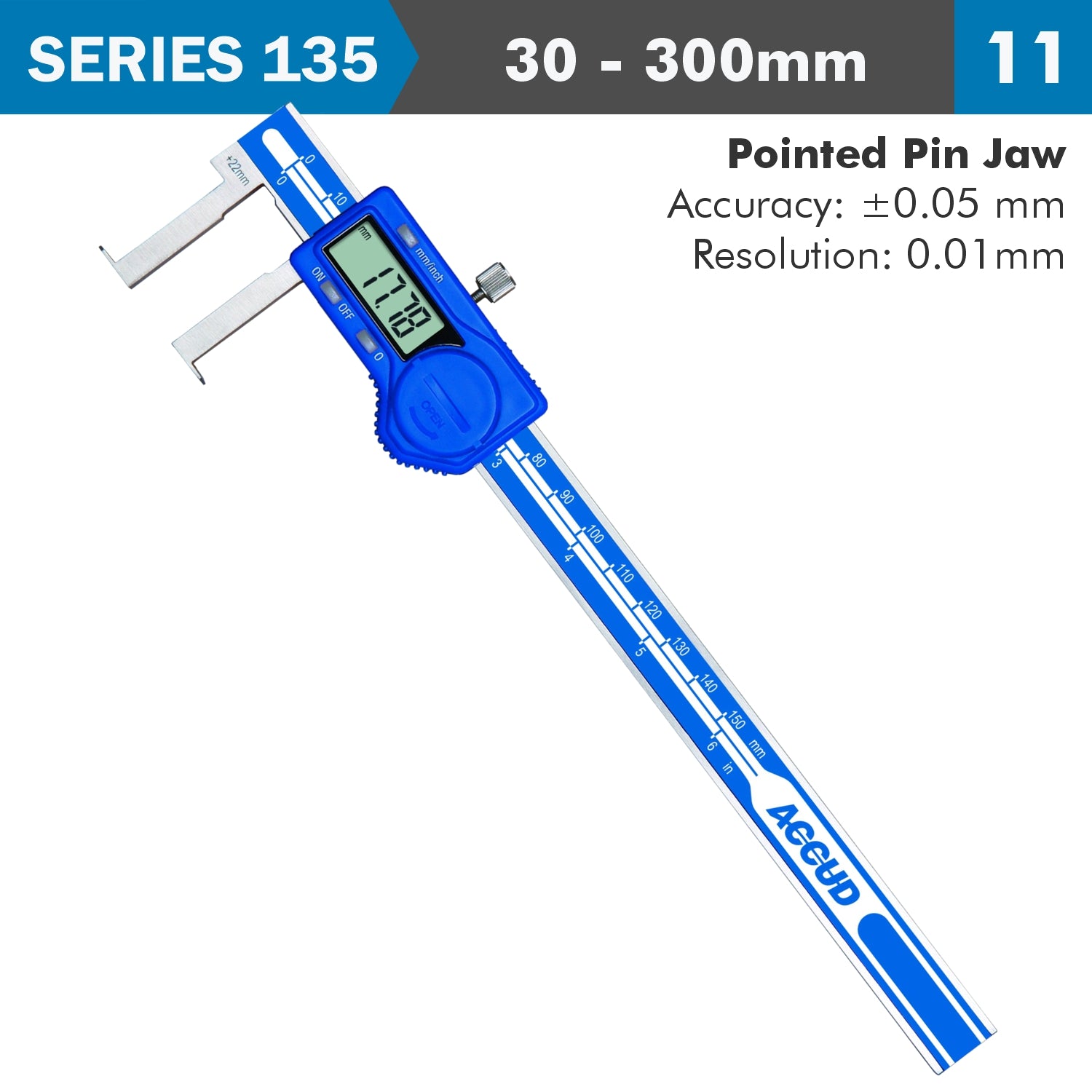

Digital Inside Neck Caliper 300 mm
SERIES 135-11
SERIES 135-11
The Digital Inside Groove Caliper is a precision tool designed specifically for measuring internal grooves with ease and accuracy. Ideal for machining, manufacturing, and quality control, it delivers fast digital readings with high precision.
Manufacturer Cat No: 135-012-11
Range: 30 mm - 300 mm
Jaw length: 50 mm
Graduation: 0.01 mm | 0.0005 in
Accuracy: ±0,05 mm
Digital inside neck vernier caliper
Workshop professional digital inside neck caliper with measuring range 30 - 500mm and measuring resolution 0.01mm. The jaws are 50 mm long. Designed to measure grooves.
Made of hardened stainless steel. This measuring tool is equipped with a screw lock.
Made of stainless steel.
Features at a glance
- Measure groove diameter
- Screw type lock
- Resolution: 0.01 mm | 0.0005 in
- Buttons: mm/in, on/off, zero
- Battery CR2032
- Automatic power OFF
- Data output (cable code:100-11or 100-12)
- Made of stainless steel
Key Features:
- Digital Display: Provides clear, easy-to-read measurements in both metric and imperial units.
- High Precision: Offers accuracy up to 0.04mm, perfect for tight tolerance applications.
- Internal Groove Measurement: Specially designed jaws for precise internal groove dimensions.
- Stainless Steel Construction: Durable and resistant to corrosion, ensuring long-term reliability.
- Zero Reset: Simple zeroing function at any position for quick relative measurements.
Technical Specifications
| Description | Spec |
| Measurement range: | 30-300 mm |
| Resolution: | 0.01 mm | 0.0005 in |
| Accuracy: | ± 0.05 mm |
| The length of the jaws h: | 50 mm |
| Lock type: | Screw Knob |
| Fine adjuster: | NO |
| Dimension a: | 5 mm |
| Dimension b: | 15 mm |
| Dimension c: | 17 mm |
| Dimension e: | 1.5 mm |
| Dimension L: | 410 mm |
| Construction: | Hardened stainless steel |
| Included: | caliper |
SERIES 135 Applications Digital Inside Neck Caliper
