SERIES 133-11
These calipers allow users to change the shape and size of jaw contact points so specialized measurements of internal and external grooves can be taken. Outside neck calipers have specialty jaws with matching inward-facing thin contact points for taking measurements of external grooves and recesses.
Manufacturer Cat No: 133-006-11
Range: 0 mm - 150 mm
Jaw length: 40 mm
Graduation: 0.01 mm | 0.005 in
Accuracy: ±0,04 mm

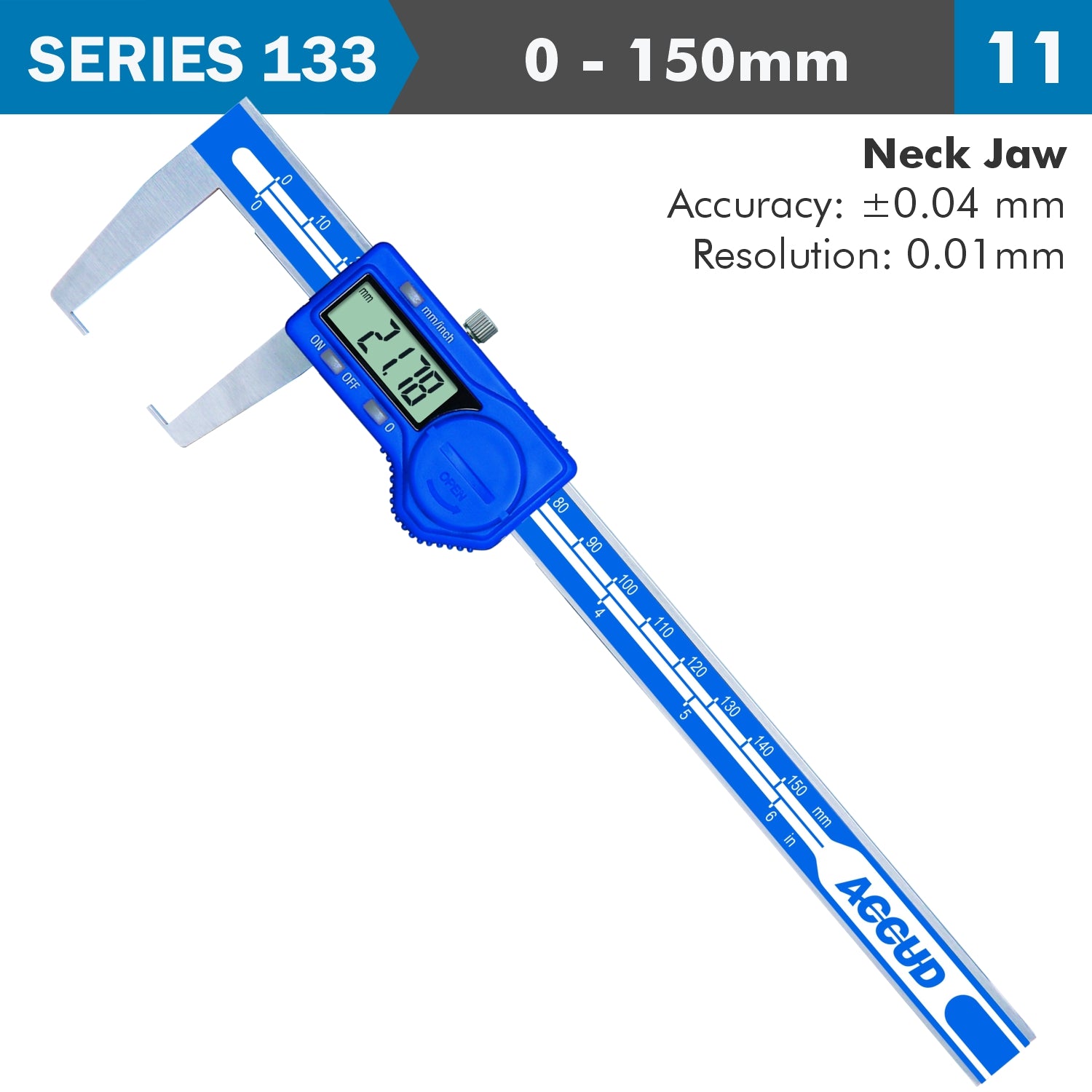

Digital Outside Neck Vernier Caliper
Workshop professional Digital Outside Neck Vernier Caliper with measuring range 0 - 150 mm and measuring
resolution 0.01 mm.
Designed to measure wall thickness, grooves and recesses.
Chromed reading surface (scale and vernier). Made of stainless steel. This measuring tool is equipped with a screw locking clamp.
Made of stainless steel.
Features at a glance
- Measure wall thickness, grooves and recesses
- Resolution: 0.01mm/0.0005'
- Automatic Power Off
- Buttons: mm/in, on/off, zero
- Battery CR2032
- Data output
(cable code:100-11or 100-12) - Made of stainless steel
Features at a glance
- Measure wall thickness, grooves and recesses
- Resolution: 0.01mm/0.0005'
- Automatic Power Off
- Buttons: mm/in, on/off, zero
- Battery CR2032
- Data output
(cable code:100-11or 100-12) - Made of stainless steel
Technical Specifications
| Description | Spec |
| Measurement range: | 0-150 mm | 0-6 in |
| Resolution: | 0.01 mm | 0.0005 in |
| Accuracy: | ± 0.04 mm |
| The length of the jaws h: | 150 mm |
| Lock type: | Screw Knob |
| Fine adjuster: | NO |
| Dimension a: | 5 mm |
| Dimension c: | 16 mm |
| Dimension L: | 250 mm |
| Construction: | hardened stainless steel reading surface (scale, vernier) - stain chrome plated reading surface |
| Included: | caliper |
