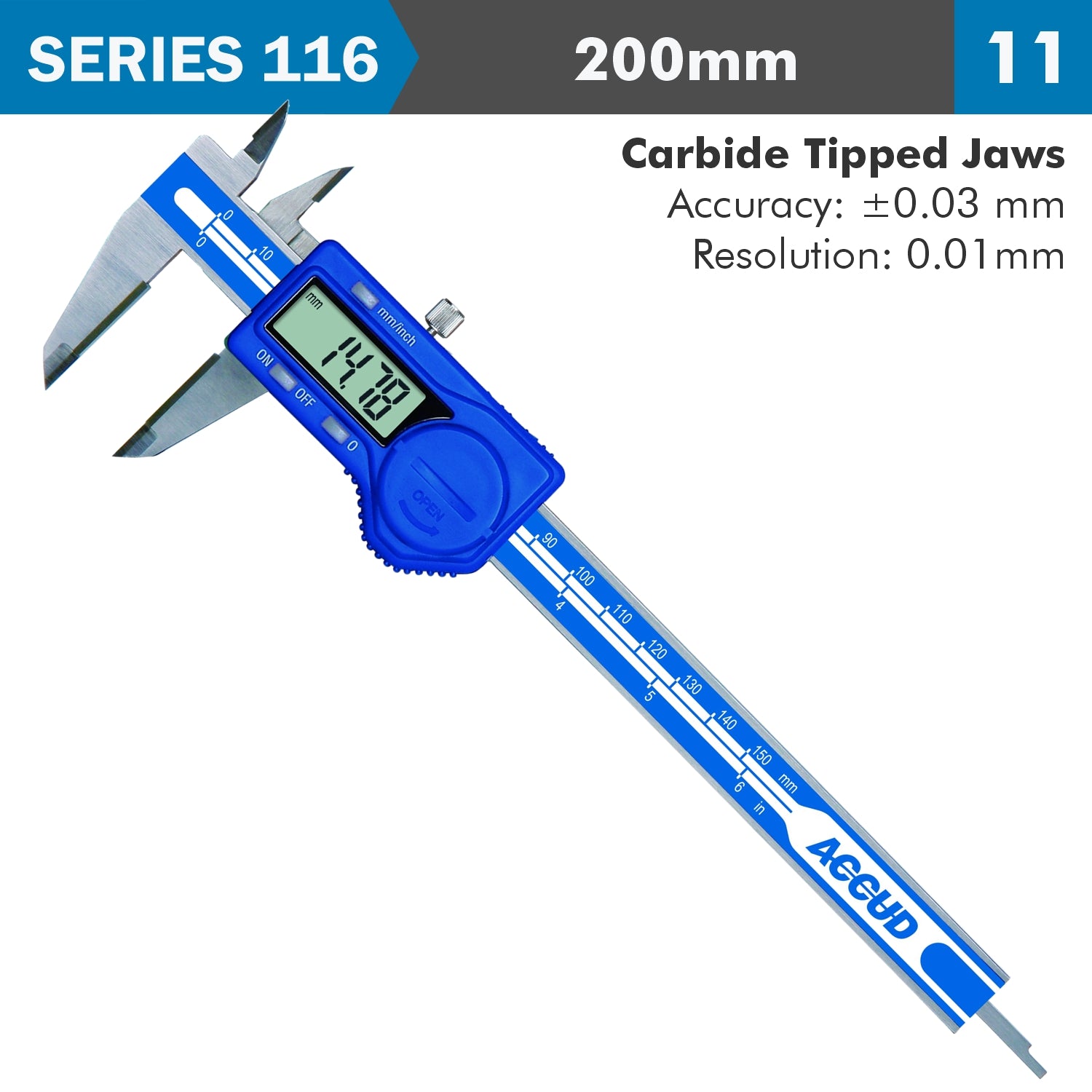

Digital Vernier Caliper with Carbide Tipped Jaws 200mm
SERIES 116
SERIES 116
A digital caliper with carbide-tipped jaws is a precision measuring tool designed for enhanced durability and wear resistance, particularly for measuring hard materials like metals, ceramics, and composites. The addition of carbide-tipped jaws makes it more suitable for tough applications compared to standard calipers.
- Carbide tipped jaws for inside and outside measurements, good wear resistance
- Resolution: 0.01mm/0.0005'
- Buttons: on/off, zero, mm/inch
- Data output (cable code:100-11 or 100-12)
- Automatic power on/off
- Made of stainless steel
Applications:
- Abrasive Materials: Carbide-tipped jaws are perfect for measuring parts made from materials that would quickly wear down regular caliper jaws, such as ceramics, metals, and composites.
- Heavy-Duty Industrial Use: Suited for harsh environments where the caliper is exposed to hard materials and needs to maintain accuracy over a long period of time.
- Precision Engineering: Used in fields where high accuracy is crucial, and the caliper's jaws need to stay sharp and resistant to wear.
A digital caliper with carbide-tipped jaws is ideal for users who need a durable, long-lasting tool capable of measuring hard or abrasive materials while maintaining precision over extended periods. Its advanced design ensures reliability in demanding industrial and engineering settings.
Key Features:
- Carbide-Tipped Jaws: The measuring surfaces of the jaws are tipped with tungsten carbide, a highly durable and wear-resistant material. This makes the caliper more resistant to wear, especially when measuring hard materials.
- Digital Display: Provides a clear and easy-to-read LCD screen that shows measurements in both metric (mm) and imperial (inches) units, typically with high precision.
- Durability: The carbide tips offer superior hardness compared to steel, ensuring long-lasting accuracy even after repeated use on hard materials like metal, glass, or stone.
- Measurement Modes: Measures external dimensions, internal dimensions, depths, and steps, making it versatile for a variety of applications.
- Zero Function: A zero-setting button allows users to reset the display to zero at any point, which is useful for differential measurements.
- Conversion Function: Allows easy switching between metric and imperial measurements with the press of a button.
- Stainless Steel Body: Typically features a stainless steel body for corrosion resistance and strength, making the caliper durable in industrial environments.
Uses:
- Metalworking and Machining: The carbide-tipped jaws make it ideal for measuring tough, abrasive, or hard materials like metals, stone, and glass without wearing down quickly.
- Quality Control: Widely used in manufacturing and production environments to check the precision of parts, ensuring they meet design specifications.
- Engineering and R&D: Essential in labs and workshops where high-precision measurements of hard materials are required.
- Aerospace and Automotive: Used for precise measurement of components that require durability and high accuracy in challenging environments.
Advantages:
- Increased Durability: The carbide-tipped jaws significantly extend the tool's lifespan, especially when measuring hard materials that would wear down standard steel jaws.
- Precision: Offers high measurement accuracy, typically within ±0.01 mm (0.0005 inches), making it suitable for fine measurement tasks.
- Ease of Use: The digital display allows for quick, clear readings without the need to interpret vernier scales.
- Versatility: Can measure external, internal, depth, and step dimensions, making it a multifunctional tool for a wide range of applications.
How to use:
- Position the Jaws: The user moves the jaws of the caliper to fit the object being measured.
- Measurement Display: The digital sensor inside the caliper detects the distance between the jaws and displays the measurement on the screen in real-time.
- Switch Units: Measurements can easily be switched between millimeters and inches with the push of a button.
- Zero Function: Pressing the zero button resets the display to zero at any point, allowing for differential measurements.
Uses:
- External Measurements: The external jaws are used to measure the outside dimensions of objects like shafts, rods, and blocks.
- Internal Measurements: The internal jaws measure the inner diameter of holes, tubes, and other hollow objects.
- Depth Measurement: The depth rod is used to measure the depth of holes or recesses.
- Step Measurement: Measures the height difference between two surfaces.
A digital caliper is an essential tool for professionals and hobbyists alike, offering precise, easy-to-read measurements for a variety of applications.
Digital Vernier Caliper AC116 Series
Technical parameters:
| Description | Spec |
| Measurement range: | 0 - 200 mm | 0 - 8' |
| The length of the jaws h: | 50 mm |
| Resolution: | 0,01 mm / 0.0005' |
| Accuracy: | ± 0,03 mm |
| Dimension L: | 286 mm |
| Dimension a: | 24 mm |
| Dimension b: | 19 mm |
| Dimension c: | 16 mm |
| ABS function | NO |
| Automatic shutdown: | YES |
| mm / inch switch: | YES |
| Off / On button: | YES |
| Data output: | YES |
| Lock type: | screw |
| Body material: | stainless steel |
| Included: | caliper, 2 batteries, plastic case. |
