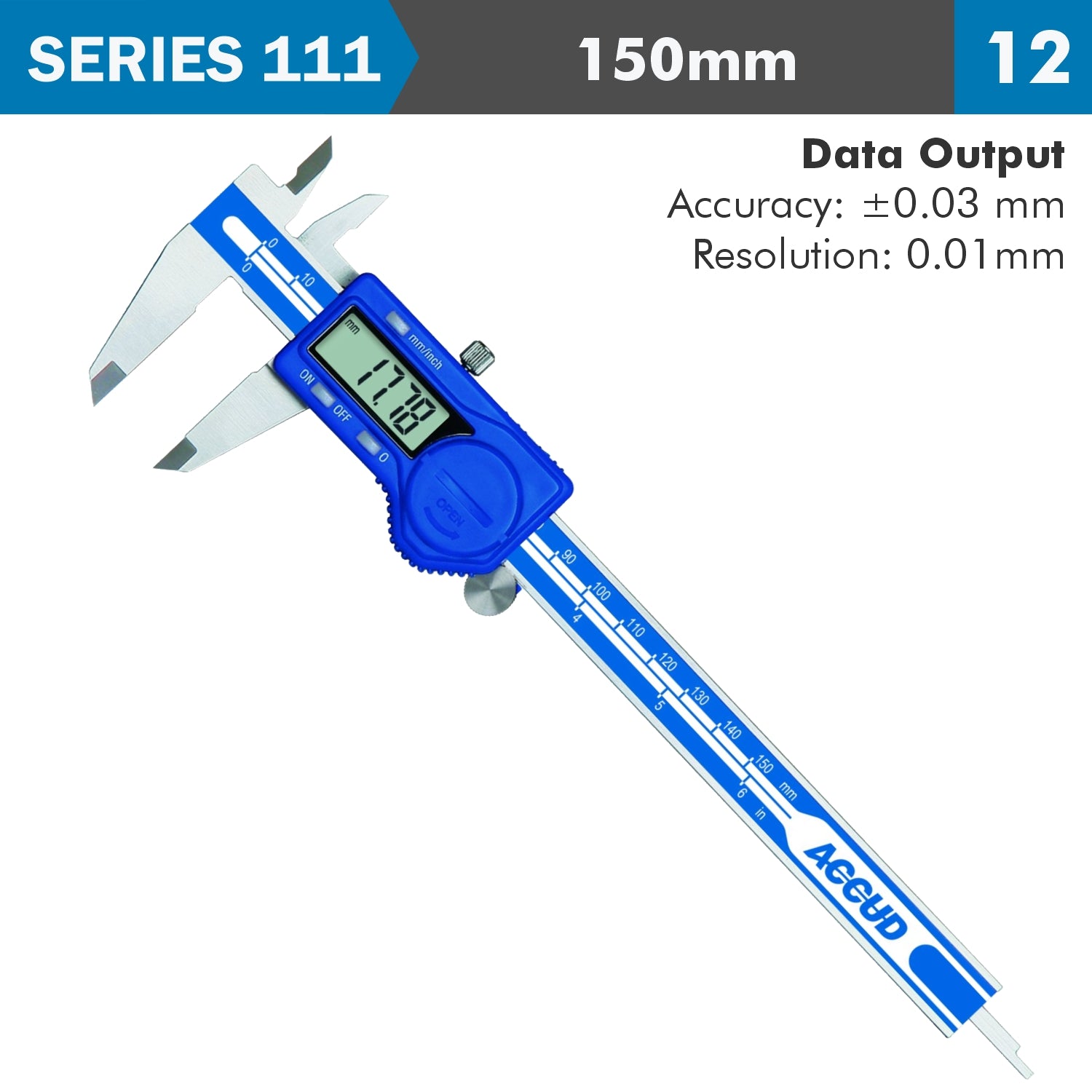

Digital Caliper 150 mm
SERIES 111-12
SERIES 111-12
Manufacturer Cat No: 111-006-12
Range: 0 mm - 150 mm
Resolution: 0,01 mm or 0.0005 in
Accuracy: ±0,03 mm
Electronic caliper with digital output
Workshop electronic caliper with measuring range of 0 -150mm | 6' and measuring resolution 0,01mm / 0.0005'. It fully meets the DIN862 standard and equipped with a data output socket for recording measurements by computer.
Made of stainless steel.
Applications:
- Manufacturing and Machining: Digital calipers are essential for measuring components with high accuracy in industries like automotive, aerospace, and general manufacturing.
- Quality Control: Used in quality assurance to ensure that parts meet specific dimensional tolerances.
- Engineering: Engineers use digital calipers to take precise measurements during design and prototype development.
- Woodworking and DIY: Used to measure materials and components for precise cutting or fitting.
Advantages:
- High Precision: Typically offers an accuracy of ±0.03 mm, making it suitable for precision tasks.
- Easy to Read: The digital display eliminates the need for interpreting vernier or dial scales, reducing human error.
- Instant Conversion: Allows for easy conversion between metric and imperial units with the press of a button.
- Zeroing Functionality: The ability to zero the measurement at any point allows for more versatile measuring and comparison tasks.
Features at a glance
- Resolution: 0.01mm / 0.0005'
- Buttons: on/off, zero, mm/inch
- Data output (cable code:100-11or 100-12)
- Automatic power on/off
- Meet DIN862 Standard
- Made of stainless steel
How to use:
- Position the Jaws: The user moves the jaws of the caliper to fit the object being measured.
- Measurement Display: The digital sensor inside the caliper detects the distance between the jaws and displays the measurement on the screen in real-time.
- Switch Units: Measurements can easily be switched between millimeters and inches with the push of a button.
- Zero Function: Pressing the zero button resets the display to zero at any point, allowing for differential measurements.
Uses:
- External Measurements: The external jaws are used to measure the outside dimensions of objects like shafts, rods, and blocks.
- Internal Measurements: The internal jaws measure the inner diameter of holes, tubes, and other hollow objects.
- Depth Measurement: The depth rod is used to measure the depth of holes or recesses.
- Step Measurement: Measures the height difference between two surfaces.
A digital caliper is an essential tool for professionals and hobbyists alike, offering precise, easy-to-read measurements for a variety of applications.
Technical parameters:
| Description | Spec |
| Measurement range: | 0 - 150 mm | 0 - 6' |
| The length of the jaws h: | 40 mm |
| Resolution: | 0,01 mm / 0.0005' |
| Accuracy: | ± 0,03 mm |
| Dimension L: | 236 mm |
| Dimension a: | 21 mm |
| Dimension b: | 16 mm |
| Dimension c: | 16 mm |
| Standard: | DIN862 |
| ABS function | NO |
| Automatic shutdown: | YES |
| mm / inch switch: | YES |
| Off / On button: | YES |
| Data output: | YES |
| Lock type: | screw |
| Body material: | stainless steel |
| Included: | caliper, 2 batteries, plastic case. |
