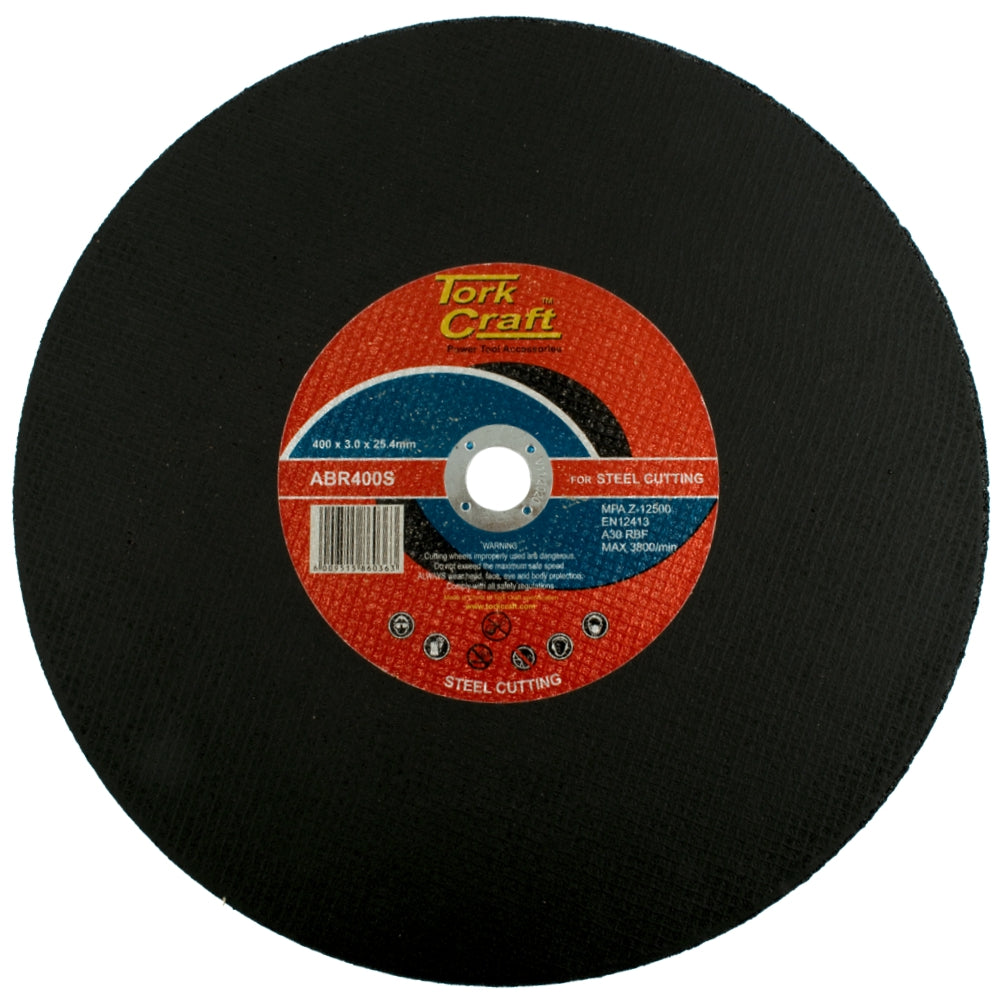

Tork Craft Cutting Disc — Steel, 400 × 3.0 × 25.4 mm
Built for heavy-duty chop saws and stationary cut-off machines, the Tork Craft ABR400S delivers fast, straight cuts in steel section, bar and tube. The 400 mm diameter offers deep cut capacity, the 3.0 mm kerf balances speed and stability, and the standard 25.4 mm (1") bore fits common industrial arbors.
A reinforced, high-grade bonded abrasive keeps the wheel tracking true, limiting vibration and heat so you spend less time dressing edges and more time getting parts out the door.
Features
- Large 400 mm diameter for deep, one-pass cuts on heavy stock.
- 3.0 mm thickness — proven balance of cutting speed, edge stability and life.
- 25.4 mm arbor (1") for chop saws/cut-off saws.
- Reinforced Type 41 flat cut-off wheel for straight tracking.
- Steel-focused bond for general fabrication and workshop use.
Benefits
- Clean, fast cuts reduce burrs and post-cut finishing.
- Stable feel through the kerf for better accuracy and user control.
- Lower cost per cut thanks to durable bond and consistent wear.
Extra Information
- Ideal on mild steel, angle/profile, tube and plate. For stainless, use an INOX-rated disc.
- Use only for straight cutting; do not side-grind with cut-off wheels.
- Best results at rated speed with steady feed pressure—let the wheel do the work.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / Cat No. | ABR400S |
| Disc Type | Cut-off wheel (Type 41, flat) |
| Diameter | 400 mm |
| Thickness (Kerf) | 3.0 mm |
| Bore / Arbor | 25.4 mm (1") |
| Material Suitability | Steel / ferrous metals |
| Max Peripheral Speed | 80 m/s (typical) |
| Max RPM (Ø400) | ≈ 3 800 rpm |
| Standards | EN 12413 (bonded abrasives) |
| Pack Qty | Single disc (check listing for multi-packs) |
| Tool Compatibility | Chop/cut-off saws with 25.4 mm arbor & guard |
| Typical Applications | Fabrication, site cutting, steelwork, maintenance |
Safety
- Always use the saw’s guard and wear eye, face, hearing and hand protection.
- Confirm the machine’s no-load RPM does not exceed the disc rating.
- Mount securely and perform a brief no-load spin-up before cutting.
- Do not twist or bind the wheel; maintain a straight, steady feed.
- Discard damaged, dropped or expired discs immediately.
