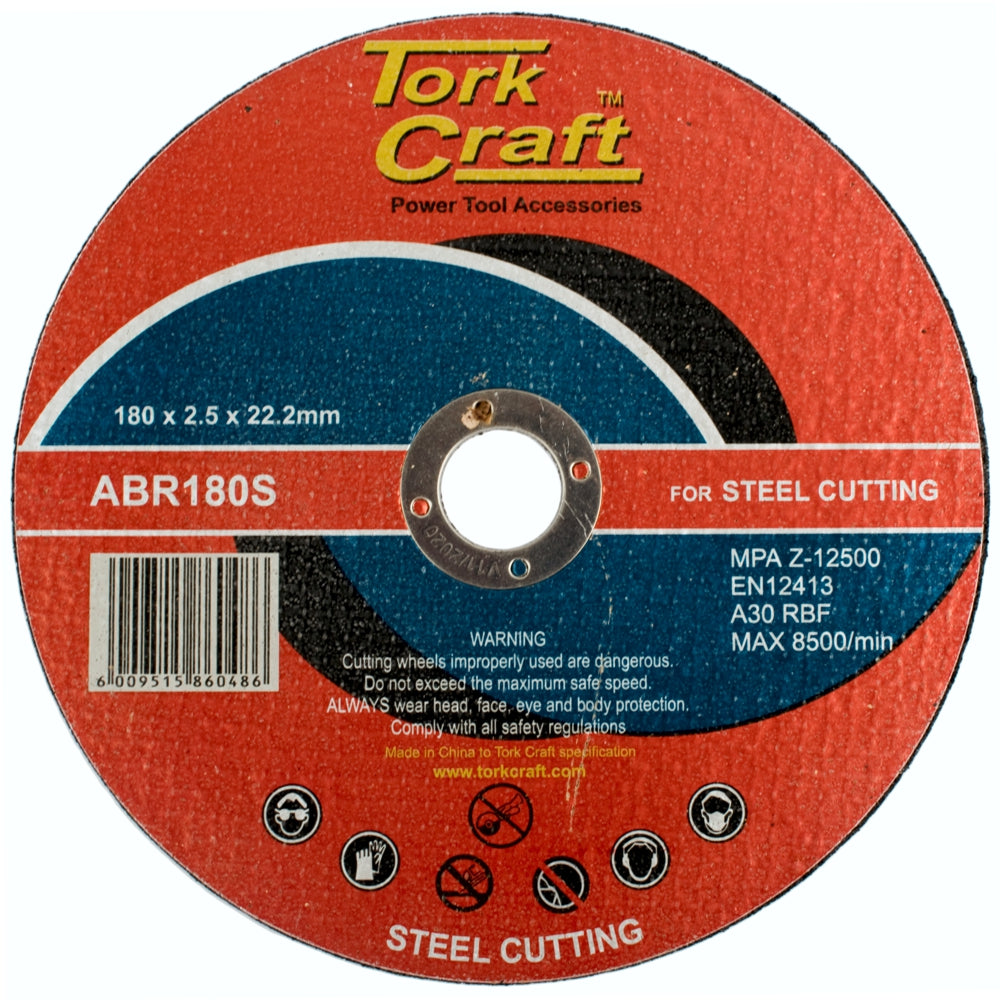

CUTTING DISC STEEL 180 X 2.5 X 22.22
Features
- 180 mm diameter for deeper cuts and efficient lineal speed.
- 2.5 mm thickness—great balance of cutting speed, edge stability and disc life.
- 22.23 mm arbor—fits standard 180 mm angle grinders.
- Reinforced bonded abrasive for strength and straight tracking.
- Steel-focused blend for ferrous metals and general fabrication.
Benefits
- Fast, clean cuts reduce burr and post-cut finishing.
- Longer service life helps lower cost per cut.
- Stable feel in the cut improves accuracy and user control.
- Wide compatibility with common 180 mm grinders on site and in the shop.
Extra Information
- Best for mild steel, angle, tube, channel and plate; not intended for stainless (use INOX-rated discs) or non-ferrous metals.
- For fastest results, let the wheel cut—avoid excessive side pressure and keep the tool at a shallow approach angle.
- Use a guarded grinder and match the disc diameter to the machine’s rated size.
Specifications
| Description | Spec |
|---|---|
| Brand | Tork Craft |
| Model / Cat No. | ABR180S |
| Disc Type | Cut-off wheel (Type 41, flat) |
| Diameter | 180 mm |
| Thickness (Kerf) | 2.5 mm |
| Bore / Arbor | 22.23 mm |
| Material Suitability | Steel / ferrous metals (general fabrication) |
| Max Peripheral Speed | 80 m/s (typical) |
| Max RPM (Ø180) | ≈ 8 500 rpm (typical @ 80 m/s) |
| Standards | EN 12413 (bonded abrasives) |
| Pack Qty | Sold individually (check listing for multi-pack options) |
| Tool Compatibility | 180 mm angle grinders with guard |
Safety
- Always use the grinder’s guard and wear eye, face, hearing and hand protection.
- Confirm the grinder’s no-load RPM does not exceed the disc’s rated RPM.
- Mount firmly; perform a brief no-load spin-up in a safe direction before cutting.
- Use for straight cutting only; do not side-grind with cut-off wheels.
- Discard damaged, dropped or expired discs immediately.
