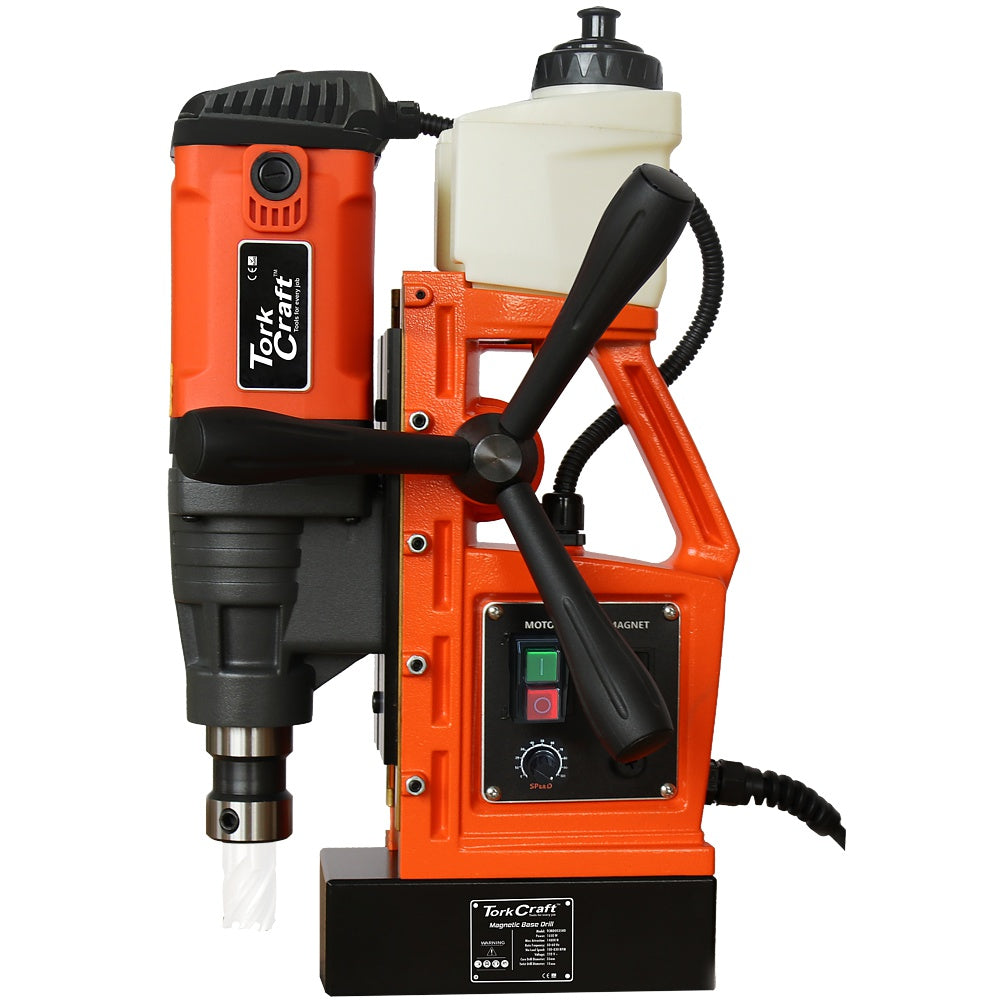

35mm MAGNETIC BASE DRILL 14800N
The magnetic base drill is fitted on a strong dual-coil magnet (electromagnet) with a maximum core drill capacity of 35mm. The speed is adjustable electronically between 100-830 rpm.
Application:
- Building construction
- Bridge construction
- Ship/Marine Construction
- Annular cutters or twist drill bits
- Horizontal or overhead drilling
Great for horizontal, side face and top face drilling
Features:
- Strong dual coil magnet (electromagnet).
- With overload protection.
- High power and light weight.
- Constant power soft starting.
- Integrated slide and gearbox provides high accuracy and minimal vibration.
- Horizontal level, side face and top face drilling
Getting the best out of a Magnetic base drill:
- Always wear proper safety PPE (Personal Protective Equipment).
- Ensure the machine is switched off and unplugged from the power supply when changing or adjusting the cutting bits.
- During machine operation the cutters and drill bits must be lubricated and cooled with a suitable cutting fluid.
- Ensure the surface where the machine will be placed on is level, rust free and clean of any varnish or paint.
- Do not try and use the magnetic drill on a non-magnetic surface.
- Do not use the magnetic drill on a structure where welding is in progress as it could cause damage to the machine.
- Always use core drill bits with a pilot pin
| Description | Specifications |
| Rated voltage & frequency | 220V-240V @ 50-60 Hz |
| Cable length | 2.5m |
| Core drill capacity | Ø 35mm |
| Twist drill capacity | Ø 10mm |
| Rated imput power | 1550W |
| No-Load speed | 100-830 rpm variable |
| Maximum magnetic attraction | 14800N |
| Cutting depth | 30mm |
| Stroke | 130mm |
| Magnet Dimensions | 166(L) x 80(W) x 50(H) mm |
